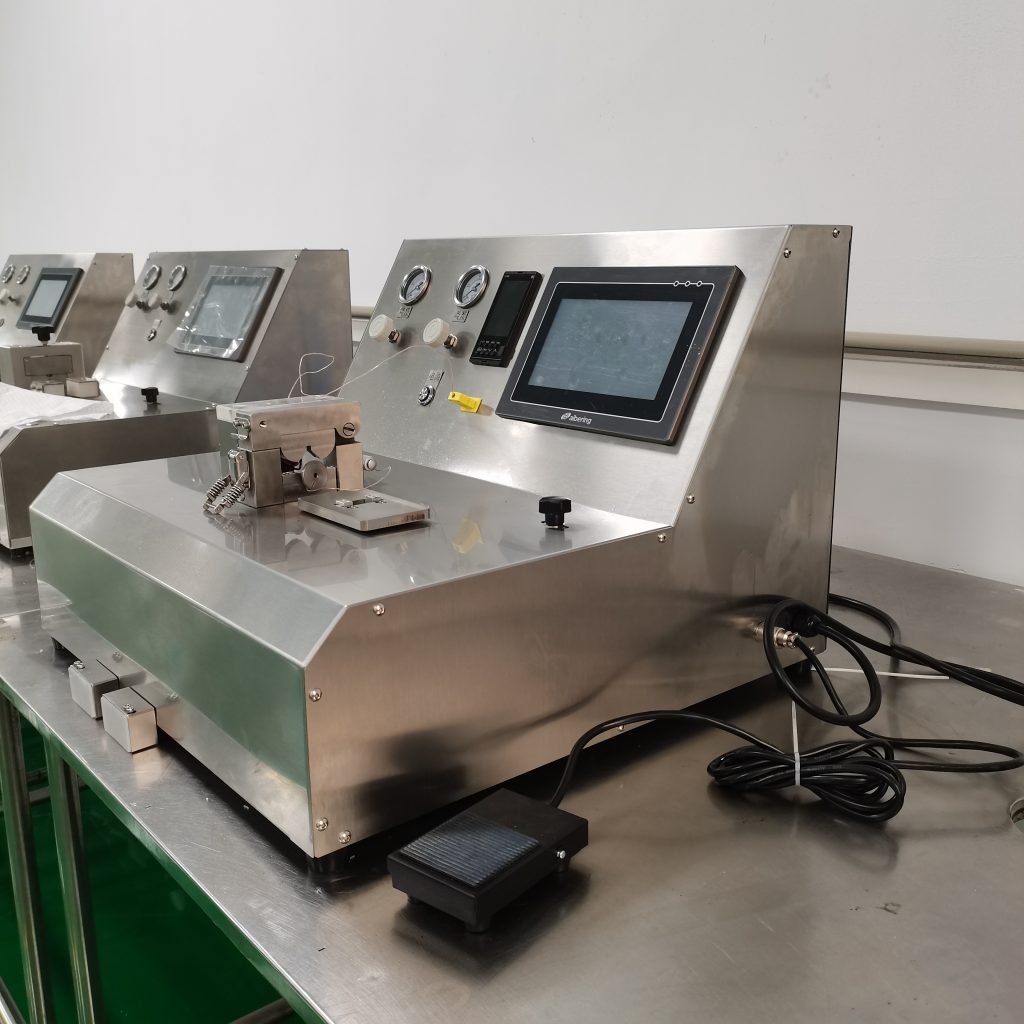

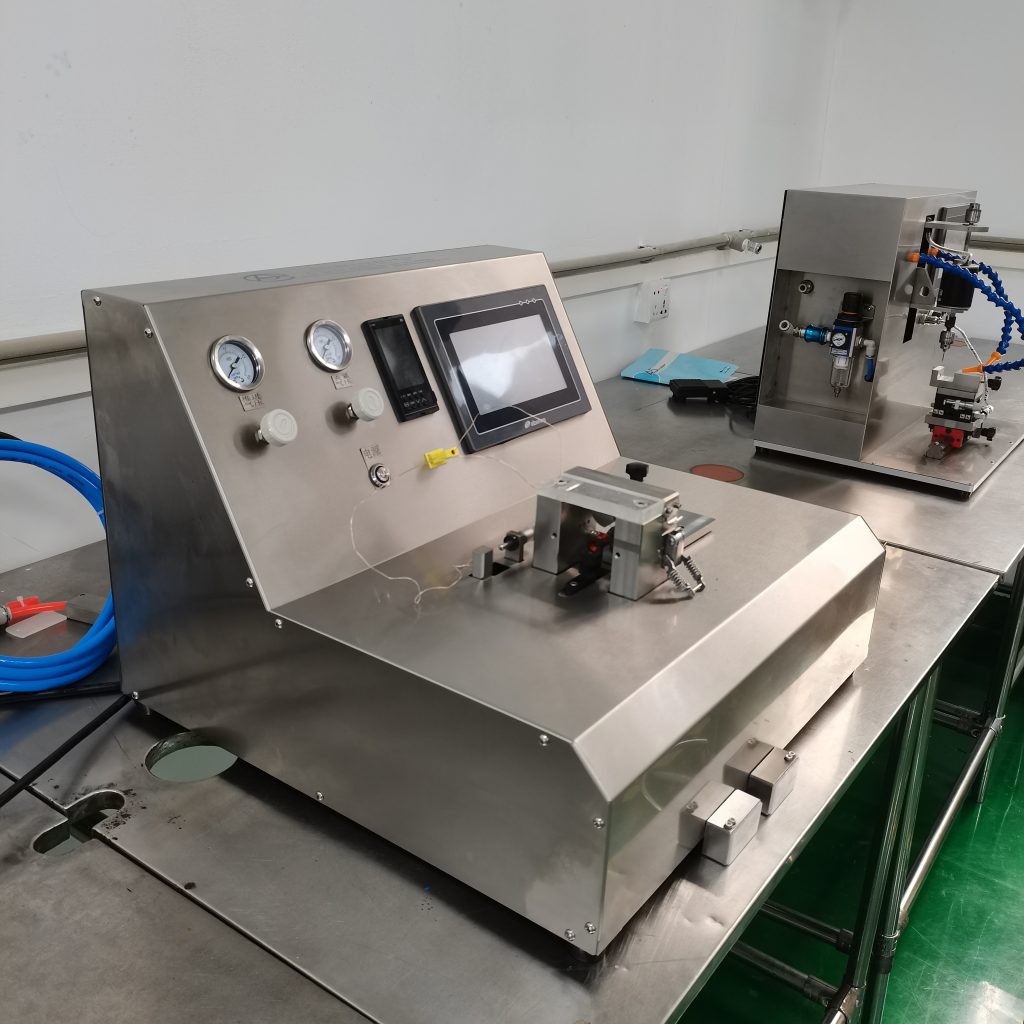

AM20402 Hot-melt tip forming machine (with temperature feedback control function)

  • Model: AM20402
  • Brand: Aituo
  • Delivery: 7-10 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

    The temperature-controlled hot-melt tip forming machine is dedicated to the post-processing the end of medical plastic catheters. Its main feature is the integrated design of the mainframe, which minimizes the size of the equipment. Temperature feedback control function adopts Japanese RKC thermostat with temperature fluctuation range of ±1℃. The real-time heating temperature and curve can be monitored on the touch screen. Easy to set the temperature and adjustment ,which not only can reduce the human error, but also improve the production capacity of standard products as well as the working environment of employees.

    Equipment parameters

    Model: AM20402
    Working voltage: AC 220V/10A/50HZ
    Power: 0.3 KW
    Air pressure: 0.5-0.8 Mpa
    Ambient temperature: -20℃+50℃
    Welding speed: 300-600 PCS/H
    Weight: 20 KG
    Size: 500×520×370 mm

    Technical parameters

    Fixture clamping: 2-20N
    Jig advancement: 2-15N
    Diameter range: 1.0-10.0mm
    Tip length: 0.5-25mm
    Temperature range: 50-500 ℃
    Applicable materials: PVC,PU,HDPE,LDPE,PP,PA,PEBAX,FEP, etc.

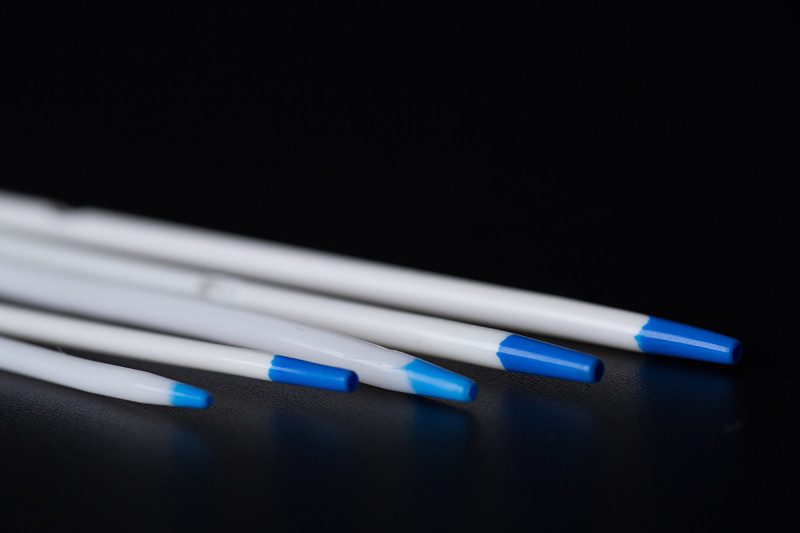

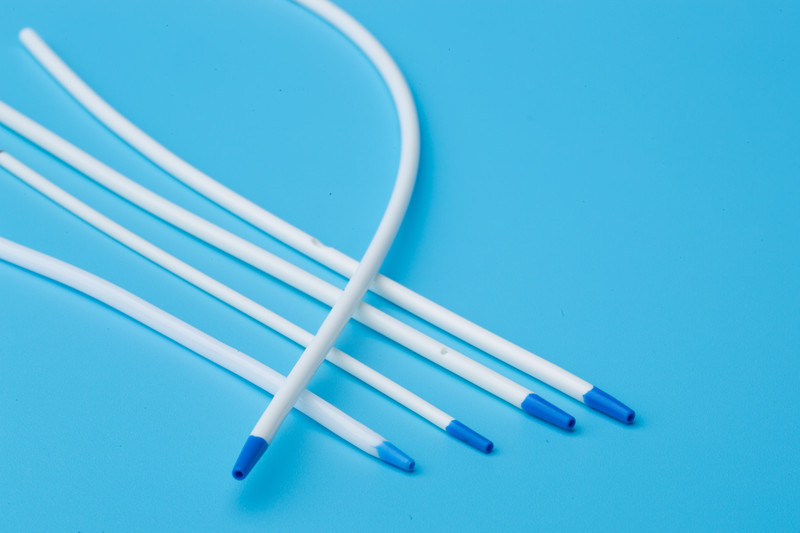

    Application products: Central venous catheter, dialysis catheter, catheter sheath,dilation catheter, PICC catheter, drainage catheter, tracheal intubation, urinary catheter, indwelling needle, etc.

    Applicable materials: PVC,PU,HDPE,LDPE,PP,PA,PEBAX,FEP, etc.
    Application products: Central venous catheter, dialysis catheter, catheter sheath,dilation catheter, PICC catheter, drainage catheter, tracheal intubation, urinary catheter, indwelling needle, etc.

    [video width="1920" height="1080" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20402.mp4"][/video]

    Accessories: Mold
