AM-35 PU Precision Medical Tube Extrusion Line

  • Model: AM-35
  • Brand: Aituo
  • Delivery: 15-20 DAYS
  • Warranty: 2 YEAR

INQUIRY NOW

×Enter your message





    Description

    Details
    Medical catheter extrusion production line PVC Pipe Production Line Machinery consists of the following seven parts:
    No.
    Item
    Qty
    Note
    1

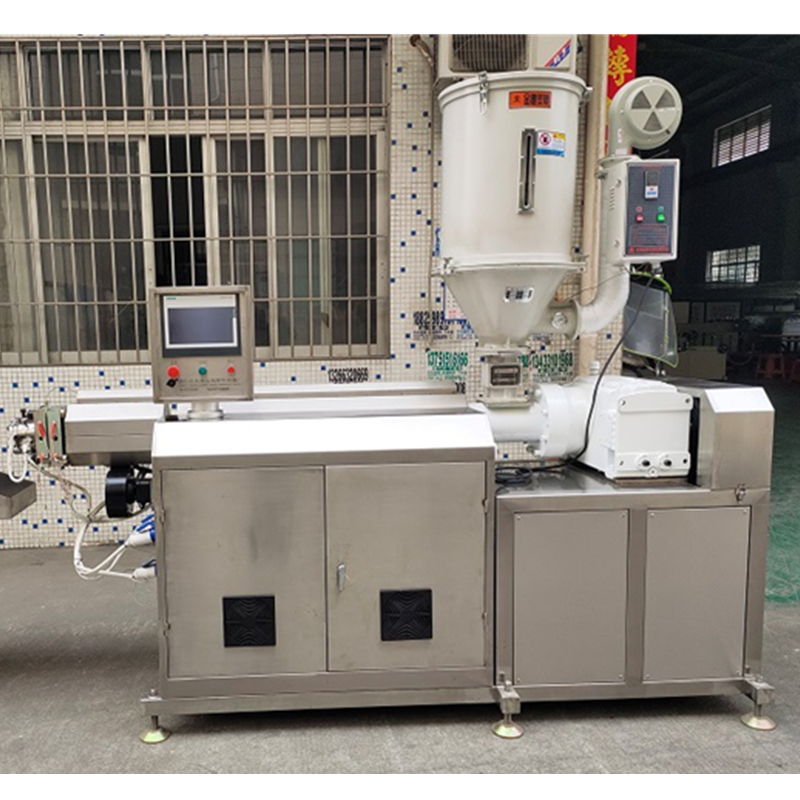

    Φ35 PU single screw extrusion host
    1SET
    Multiple types are options
    2
    Precision extrusion die for medical tube
    1SET
    4-8MM
    3

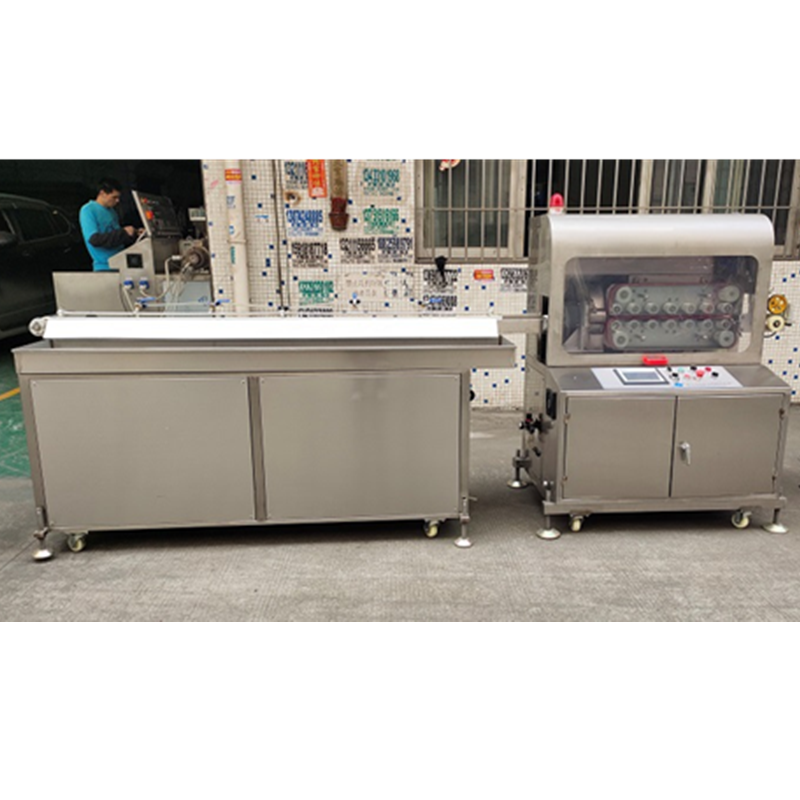

    4m stainless steel vacuum cooling water tank
    1SET

    4
    LST-25 single-axis diameter gauge
    1SET

    5
    Small belt servo traction cutting machine
    1SET

    6
    Belt conveyor receiving table
    1SET

    7
    Weilun touch screen PLC control system
    1SET

    8
    3HP air-cooled chiller
    1SET



    Specification

    Voltage: 380V/3P/50Hz
    Material: PU granular material

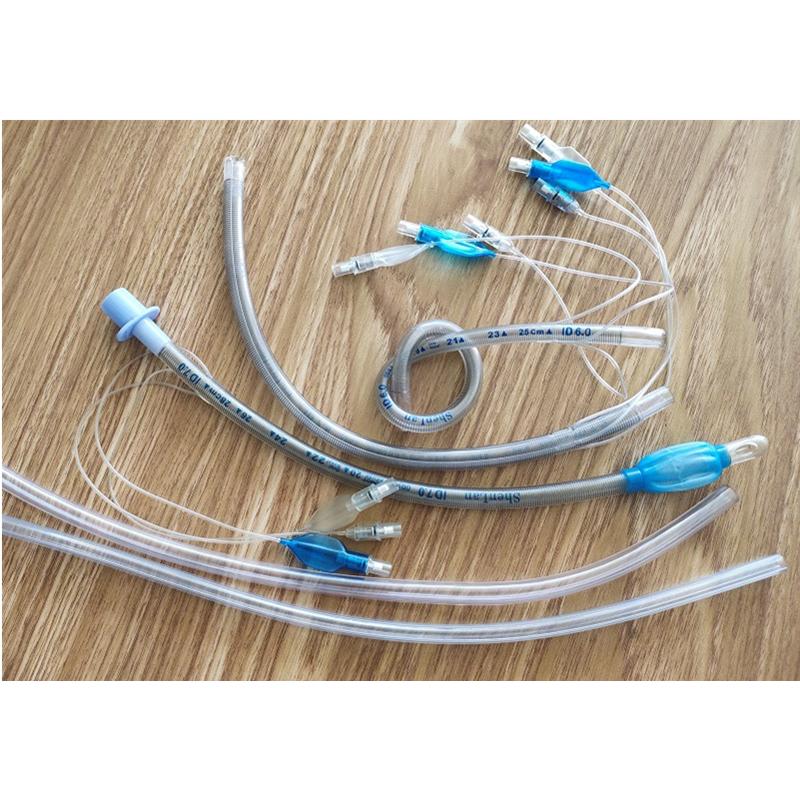

    Product: PU medical tube, pipe diameter 2-8mm
    Output: 25-30 m/min
    Equipment center height: 1000mm
    Operation direction: from right to left
    Machine size: 11*1.2*2.2m
    Total installed power: 25KW
    Actual power consumption: 18 degrees/hour

    Laser on-line diameter measurement technology: non-contact main line real-time accurate detection of the outer diameter of the catheter, with an accuracy of 0.003MM
