AM-45 PU Precision Medical Tube Extrusion Line

  • Model:AM-45 PU
  • Brand: Aituo
  • Delivery:20-60days
  • Warranty:1 YEAR

INQUIRY NOW

×Enter your message





    PRODUCT SPECIFICATIONS:

    Voltage: 380V/3P/50Hz
    Material: PU granular material
    Product: PU medical tube, pipe diameter 4-8mm
    Output: 25-30 m/min
    Equipment center height: 1000mm
    Operation direction: from right to left
    Machine size: 11*1.2*2.4m
    Total installed power: 30KW
    Actual power consumption: 18 degrees/hour

    Laser on-line diameter measurement technology: non-contact main line real-time accurate detection of the outer diameter of the catheter, with an accuracy of 0.003MM

    Details
    Medical catheter extrusion production line PVC Pipe Production Line Machinery consists of the following seven parts:
    No.
    Item
    Qty
             Note
    1
    Φ45 PU single screw extrusion host
    1SET
         Multiple types are options
    2
    Precision extrusion die for medical tube
    1SET
         4-8MM
    3
    4m stainless steel vacuum cooling water tank
    1SET

    4
    LST-25 single-axis diameter gauge
    1SET

    5
    Small belt servo traction cutting machine
    1SET

    6
    Belt conveyor receiving table
    1SET

    7
    Weilun touch screen PLC control system
    1SET

    8
    5HP air-cooled chiller
    1SET

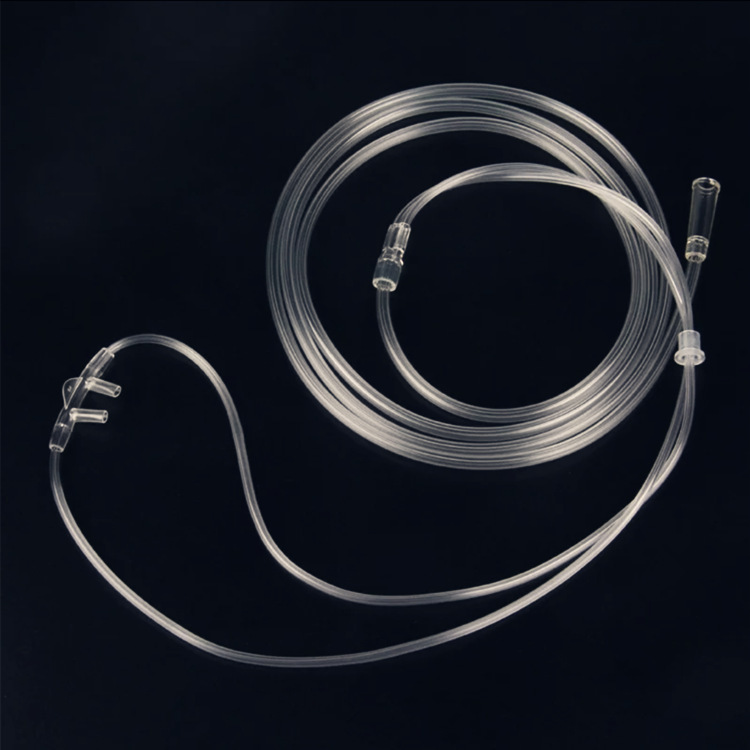

    Application

    Accessories
