AM-E65 Medical catheter extrusion production line

Model: AM-E65

Brand: Aituo

Delivery: 7-15 working days

Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

    1. Applicable materials: medical grade PVC, TPU, TPE and other materials

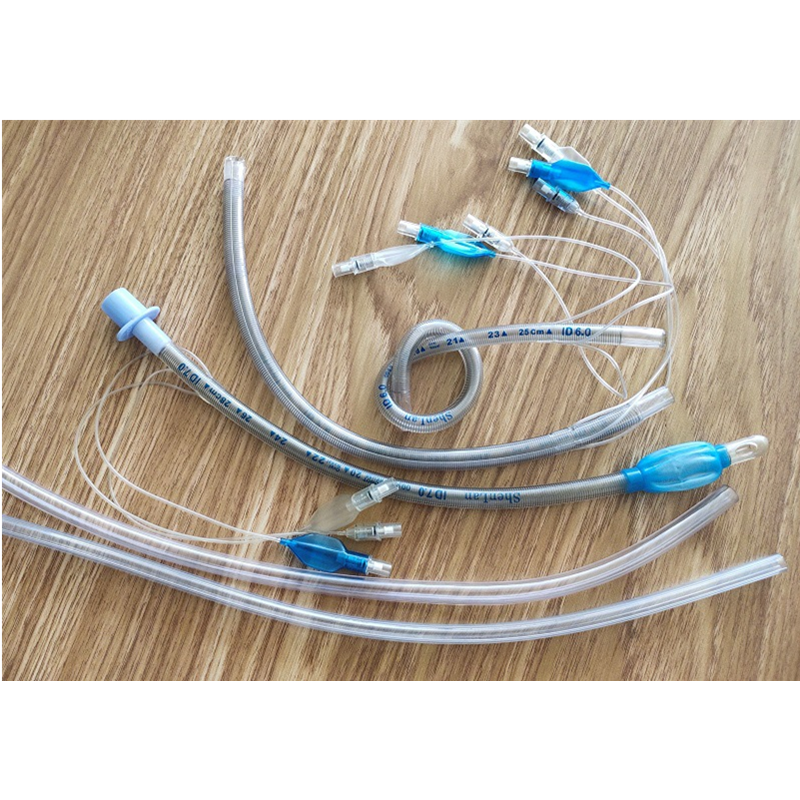

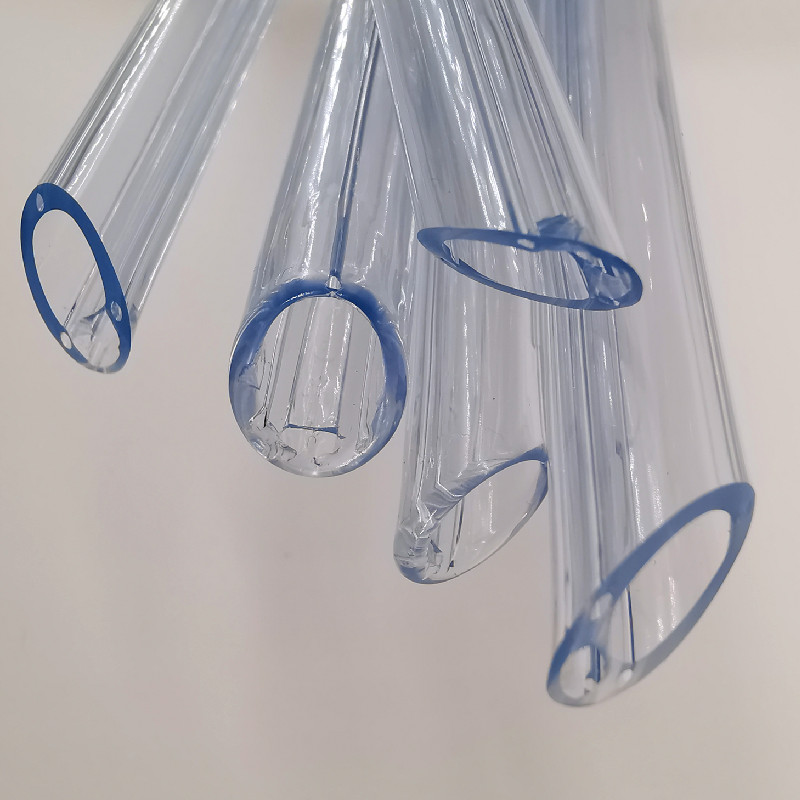

    2. Equipment use: Extrusion production of precision catheters, imaging line catheters, multi-lumen tubes, etc.
    3. Working voltage: 3P 380V 50HZ
    4. Equipment capacity: maximum extrusion capacity: 65kg/h, maximum linear speed: 65m/min
    5. Equipment energy consumption: 30KWH

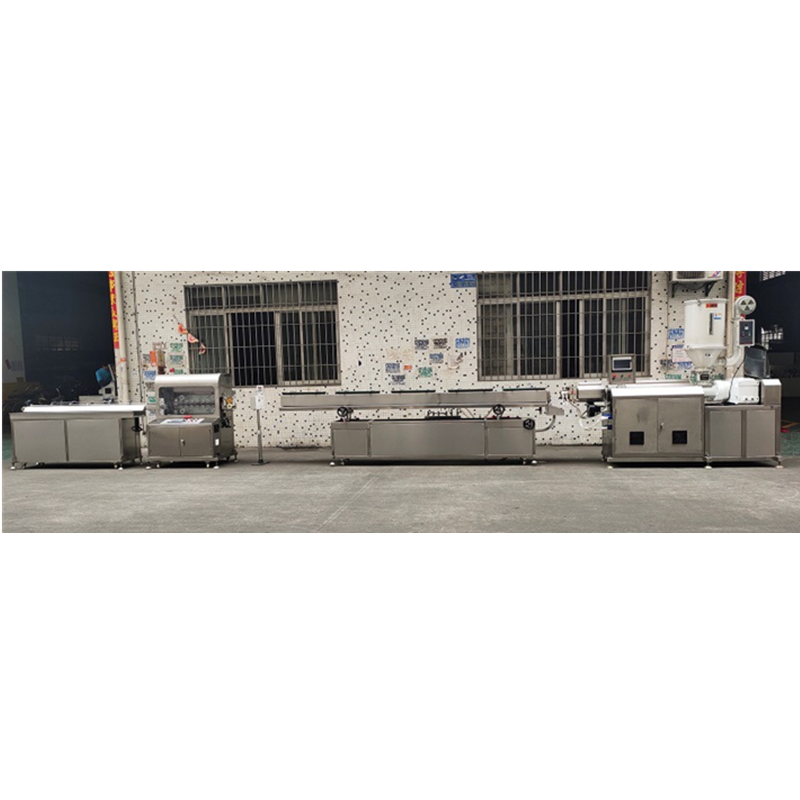

    Medical catheter extrusion production line PVC Pipe Production Line Machinery consists of the following seven parts:

    65 type high-speed extruder: 1SET Multiple types are options

    High-speed catheter extrusion mold: 1SET

    4m vacuum sizing main water tank: 1SET

    4m auxiliary cooling water tank: 1SET

    Precision traction and cutting machine: 1SET

    Extruder professional PLC control system:1SET

    Laser diameter gauge: 1SET

    10P chiller: 1SET

    Specification:

    Screw material: 38CrMoALA L/D=28:1 Compression ratio: 3.4

    Screw speed: 65 rpm

    Heater type: Stainless steel heater,Stainless steel wind hood

    Heating temperature control zone: 7 zone temperature control

    Control way: Touch screen man-machine interface, high-speed PLC,Centralized control of programmable controller

    Mould material: S-136H Pre-cooled vacuum sizing

    Sink specifications: Length: 6 meters, vacuum section: 600MM Speed: 0.5-60 m/min

    Traction belt specifications: Effective belt length: 600MM

    Cutting machine specifications: Fully automatic servo motor cutting machine,Touch screen, PLC centralized control

    1. Applicable materials: medical grade PVC, TPU, TPE and other materials

    2. Equipment use: Extrusion production of precision catheters, imaging line catheters, multi-lumen tubes, etc.
