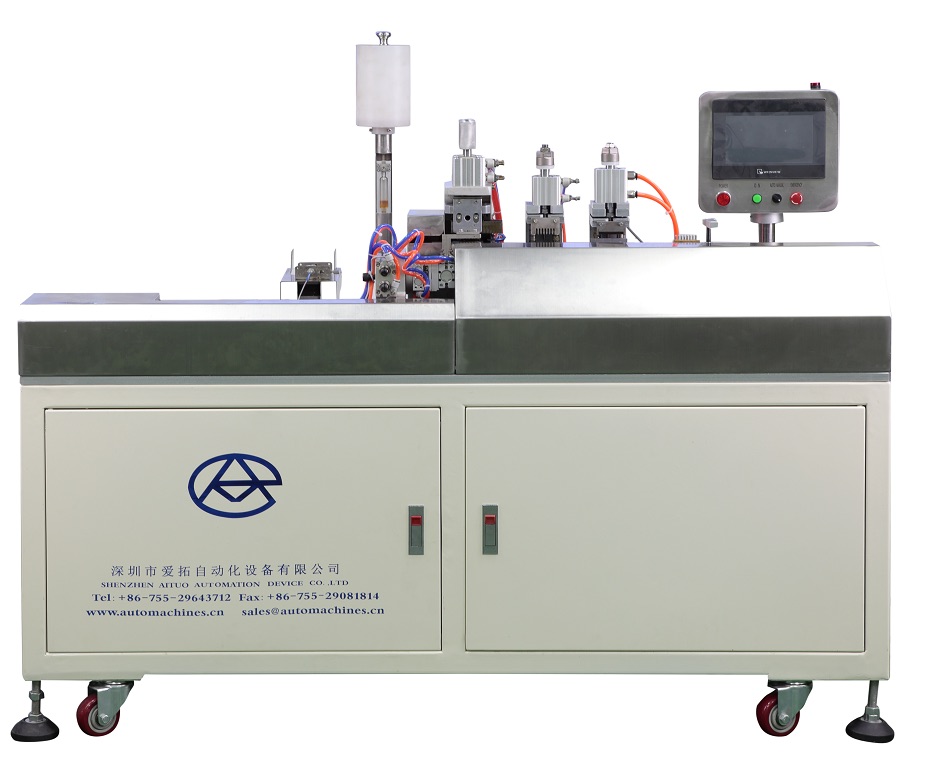

AM111-A Automatic wire stripping and tinning machine

  • Model:AM111-A
  • Brand: Aituo
  • Delivery:10-15 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message

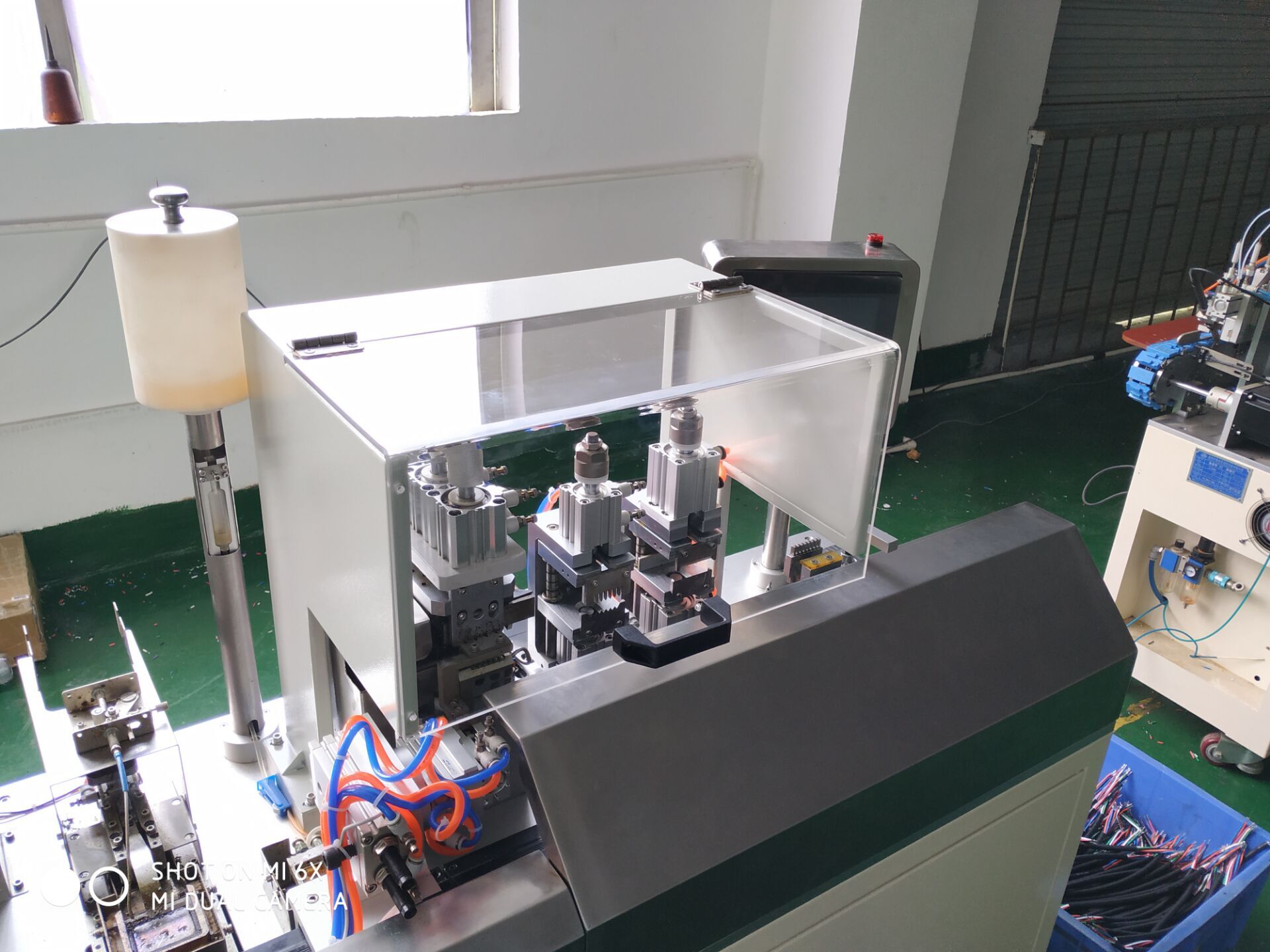

The structure mainly includes:
the mechanical part is composed of a frame, a screw rod slider, a pay-off jig, a
cylinder module, a stripping tool and so on. The electrical part is composed of PLC, touch screen display, servo motor, steppi
ng motor, switching power supply, transformer

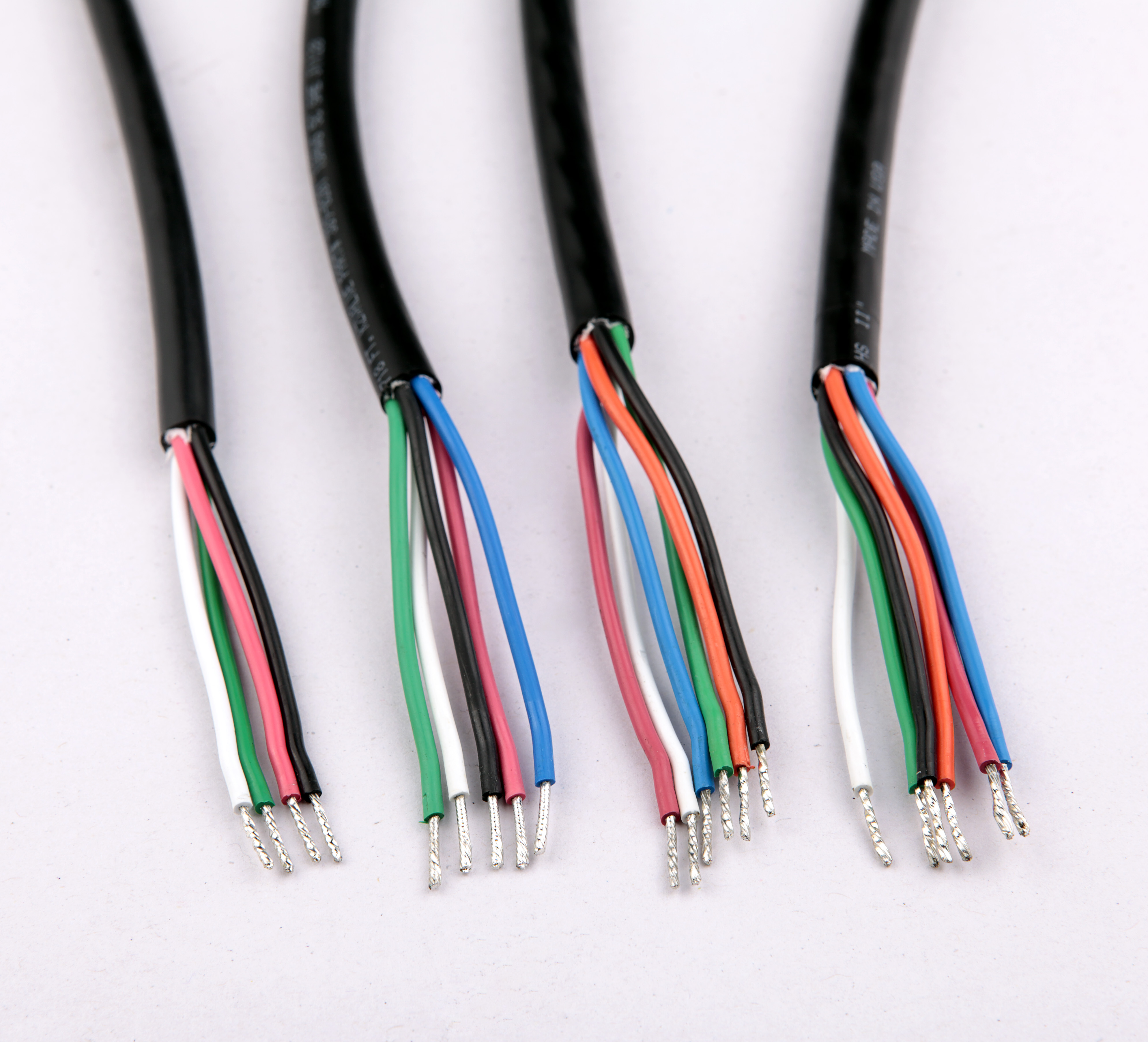

Usage:This machine is mainly for processing cable, stripping inner
cores, twisting, dip with flux, and tinning.



  • Power: 1000W
  • Weight: 300KG
  • Frequency: 50HZ / 60HZ
  • Operator: 1 person
  • Delivery:10-15 working days
  • Air pressure: 0.5~0.8Mpa
  • Welding speed: 450-500PCS/hour
  • Working voltage: single phase AC 110V / 220V
  • Ambient temperature: -20 ° C + 50 ° C
  • Dimension: 1520L × 570 W × 1120 H
