AM15-80AB High Frequency Copper Tubing Brazing Machine

  • Model:AM-15A/AB AM-25A/AB AM-30AB AM-40AB AM-60AB AM-80AB
  • Brand: Aituo
  • Delivery:10 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message

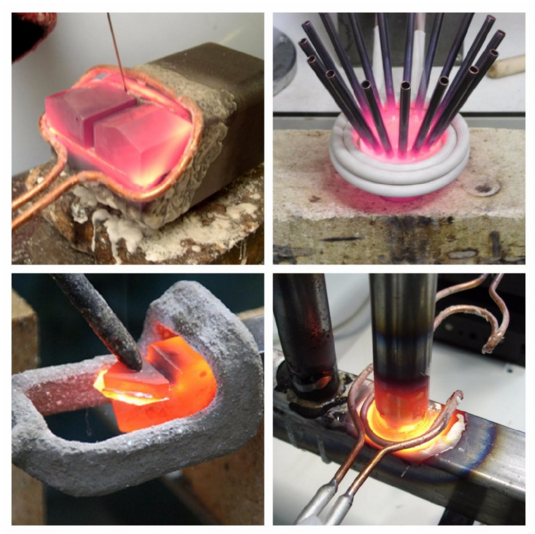

    This type high frequency brazing machines are suitable for brazing, forging and heat treatment and a lot of other applications. For example: brazing of diamond blades, brazing of machining tools, heating of rod for forging, copper tube brazing , shaft quenching and stainless steel vessel annealing and so on

    Model

    AM-15A/AB

    AM-25A/AB

    AM-30AB

    AM-40AB

    AM-60AB

    AM-80AB

    Max.output power

    15KW

    25KW

    30KW

    40KW

    60KW

    80KW

    Max. input current

    30A

     28A

    35A

    45A

    55A

    70A

    Output  current

    200-600A

    200-1200A

    400-1500A

    400-1800A

    400-2400A

    400-3200A

    Output frequency

    30-100KHz

    30-80KHz

    30-80KHz

    30-80KHz

    30-80KHz

    30-80KHz

    Input voltage

    220 VAC single-phase, 50/60Hz

    380 VAC three-phase, 50/60Hz

    Auto heating/retaining/
    cooling timers

    1-99 seconds

    Water temperature

    <40°C

    Product size (L x W x H)
    Generator


    550x220x470mm

    560x220x505mm

    600x255x540mm

    600x255x540mm

    610x280x540mm

    785x375x590mm

    Transformer

    320x220x350mm

    320x220x350mm

    450x255x390mm

    450x255x420mm

    510x255x420mm

    670x420x500mm

    Net weight

    15 kg

    30KG

    35 kg

    36 kg

    37 kg

    54 kg

    12kg

    14.5KG

    30kg

    35kg

    36 kg

    47kg

    Accessories
