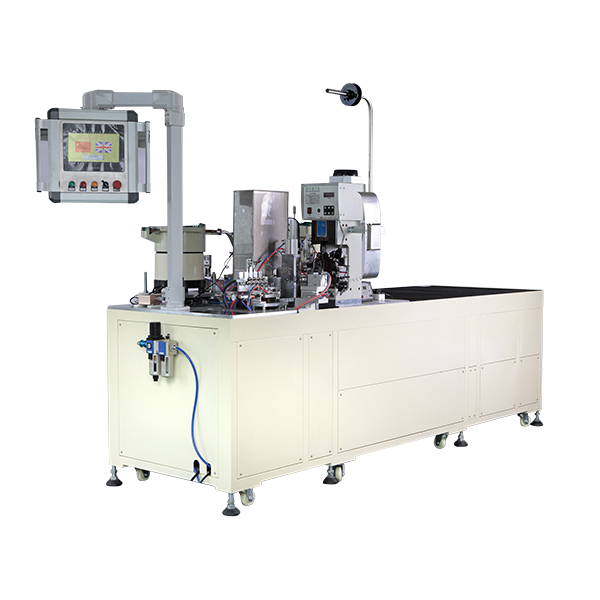

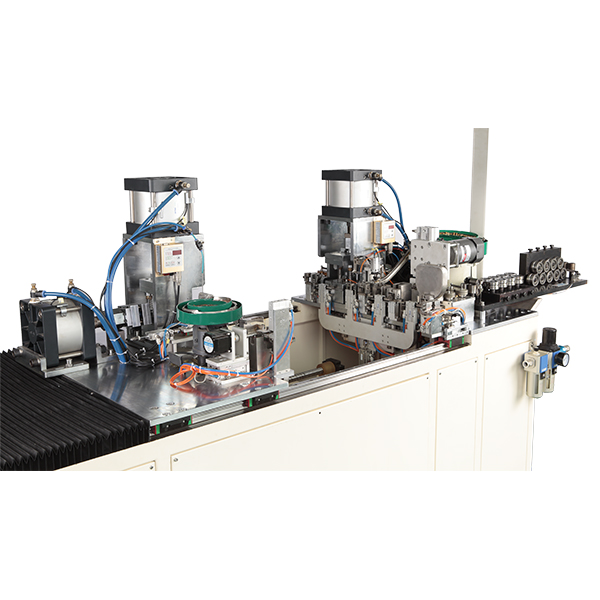

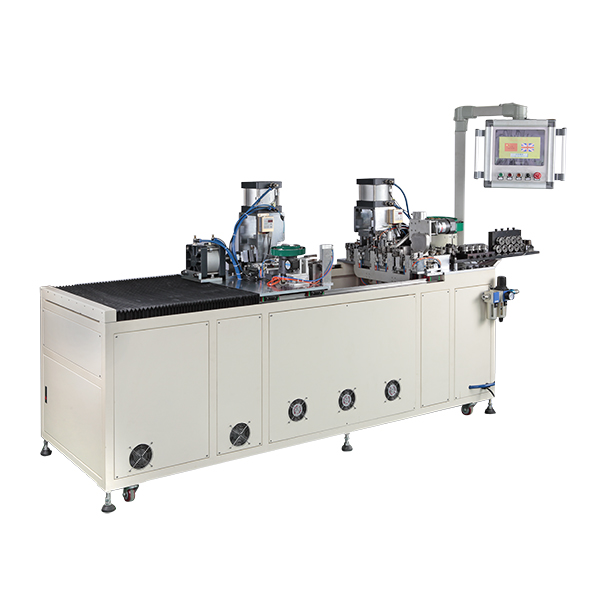

AM151 Automatic Brazing Machine

  • Model: 151
  • Brand: Aituo
  • Delivery: 25-30 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description Automatic Brazing Machine is the newest automatic welding machine developed by our company.This machine apply to welding all kinds of copper workpiece.The high frequency brazing technique and robotic arm realize the welding between workpieces. It has advantages of wide range of application, good effect, high efficiency, cost saving and environmental etc.

    Specification

    Air Pressure: 0.5-1.0MPA

    Voltage: AC220V/50Hz

    Maximum power of main engine: 3.4KW

    Power of main engine:1.5KW

    Maximum power of Brazing Machine:20KW

    Cooling hydraulic pressure :0.2MPa

    Influent temperature:less than 40℃

    Speed:8 seconds/piece

    Dimension:2100mm*900mm*2100mm

    Floor space:5020mm*2100mm

    Application The induction coil will generate strong alternating magnetic field when induction heating device outputs the electric current flows. Applying a magnetic field, the surface of workpiece will generate vortex current and be heated rapidly. The soldering flux and material will be added when the workpiece is being heated, the welding processing will finish after the soldering material dissolving and cooling.

    Accessories
