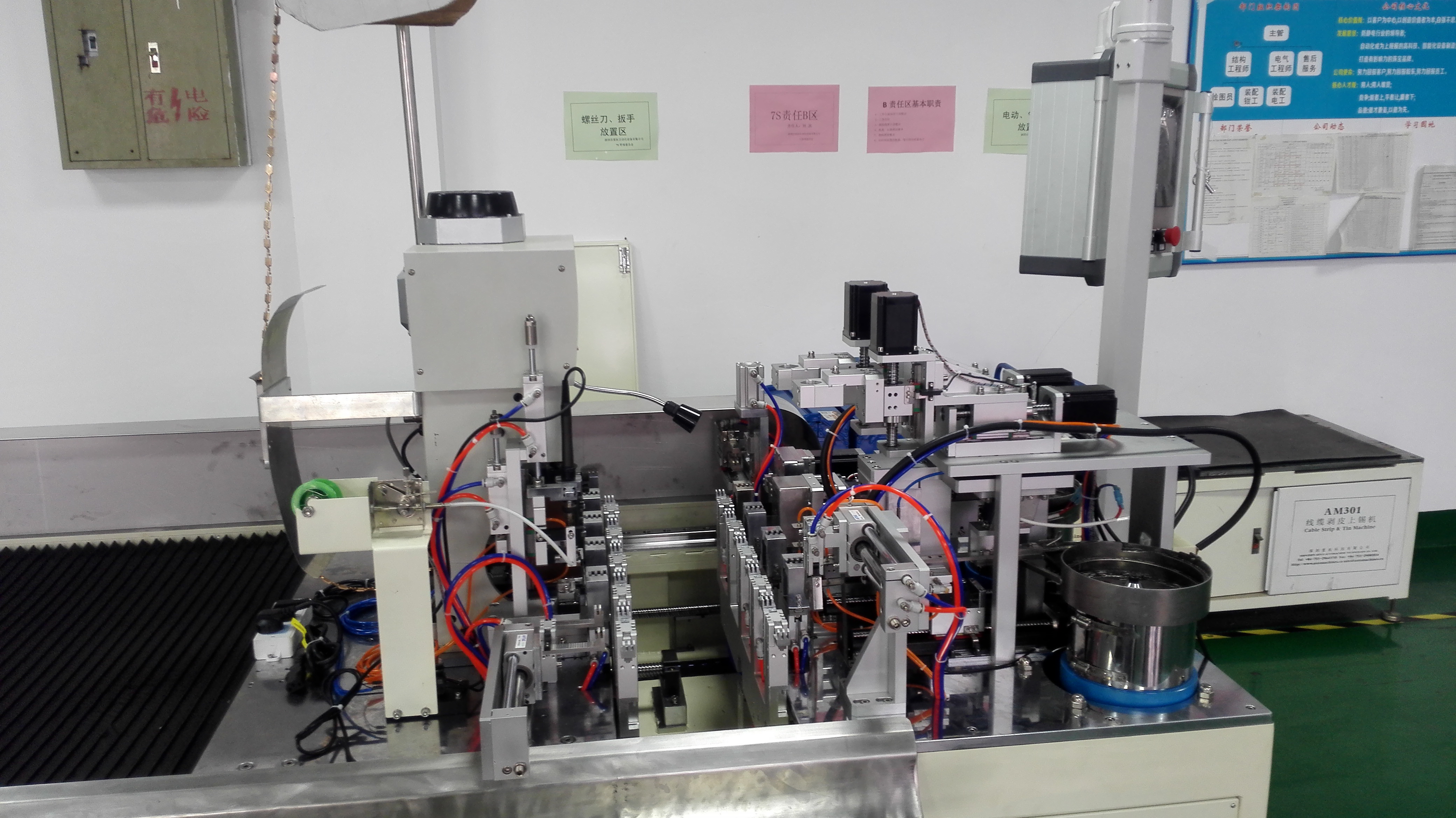

AM153 Automatic enameled wire polishing solder pin terminal soldering machine

  • Model: 153
  • Brand: Aituo
  • Delivery: 10 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message

Automatic enameled wire polishing solder pin terminal soldering machine is the newest automatic welding machine developed by our company.This machine apply to welding all kinds of copper workpiece.The high frequency brazing technique and robotic arm realize the welding between workpieces. It has advantages of wide range of application, good effect, high efficiency, cost saving and environmental etc.

Air Pressure: 0.5-1.0MPA

Voltage: AC220V/50Hz

Maximum power of main engine: 3.4KW

Power of main engine:1.5KW

Maximum power of Brazing Machine:20KW

Cooling hydraulic pressure :0.2MPa

Influent temperature:less than 40℃

Speed:8 seconds/piece

Dimension:2100mm*900mm*2100mm

Floor space:5020mm*2100mm

The induction coil will generate strong alternating magnetic field when induction heating device outputs the electric current flows. Applying a magnetic field, the surface of workpiece will generate vortex current and be heated rapidly. The soldering flux and material will be added when the workpiece is being heated, the welding processing will finish after the soldering material dissolving and cooling.
