AM159 Semi-automatic ignition pin argon arc welding machine Automatic Tig Mig Welder Machine

  • Model: AM159
  • Brand: Aituo
  • Delivery: 15-20 DAYS
  • Warranty: 2 YEAR

INQUIRY NOW

×Enter your message





    Description

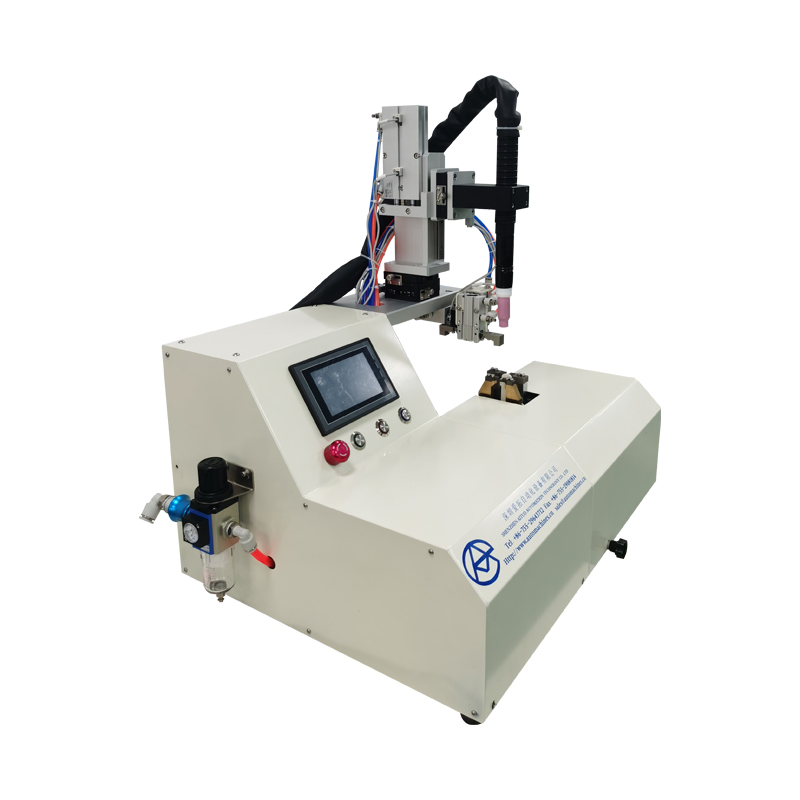

    This equipment is mainly used for semi-automatic welding of wires and ignition pins. It is composed of three stations: fixed fixture components, blanking components, and welding components. The equipment is compact in structure, fast and accurate. It uses high-power argon arc welding machine and protects the solder joints with argon gas. The welding effect Stability and other advantages.

    Specification

    (1) The structure mainly includes: the mechanical part is composed of a frame, a fixed fixture assembly, a blanking assembly, and a welding assembly.
    The electrical part is composed of PLC integrated machine, switching power supply, solid state relay and so on.
    (2) Equipment parameters of semi-automatic ignition pin welding machine
    Equipment size: 550 (length) × 410 (width) × 600 (height) weight: 30KG
    Working voltage: single-phase AC 220V, 10A, 50HZ
    Air pressure: 0.5~0.8Mpa
    Power: 0.15KW
    Ambient temperature: -20℃+50℃
    Operator: 1 person
    Welding speed: 500-9000PCS/hour

    Argon arc welding machine
    Working voltage: three-phase AC 380V, power 12.8KW
    Equipment size: 560*330*600MM

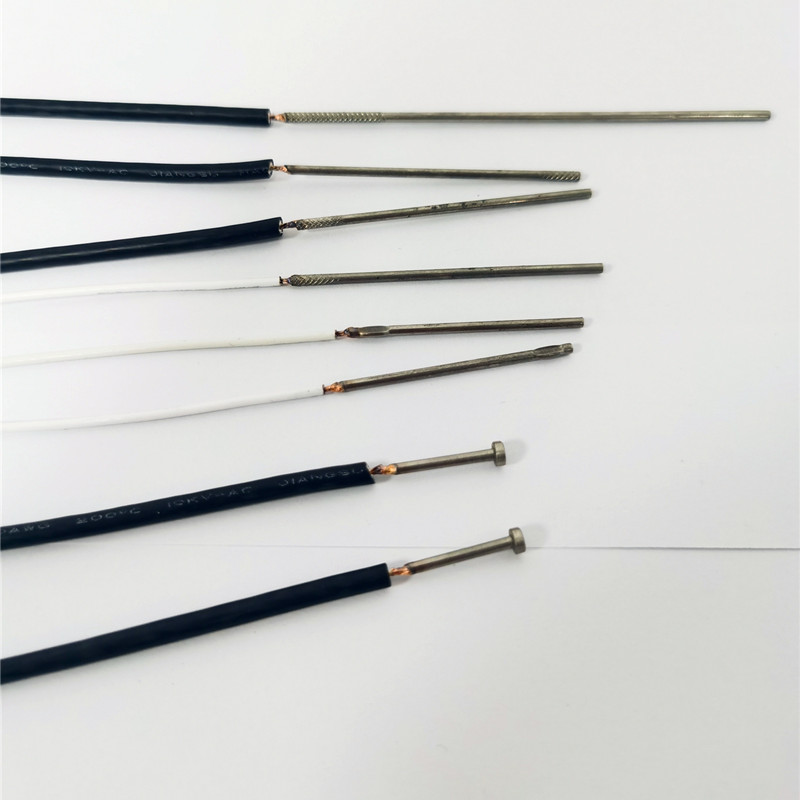

    Application

    [video width="540" height="960" mp4="https://www.automachines.cn/wp-content/uploads/2021/07/AM159视频20210622.mp4"][/video]
