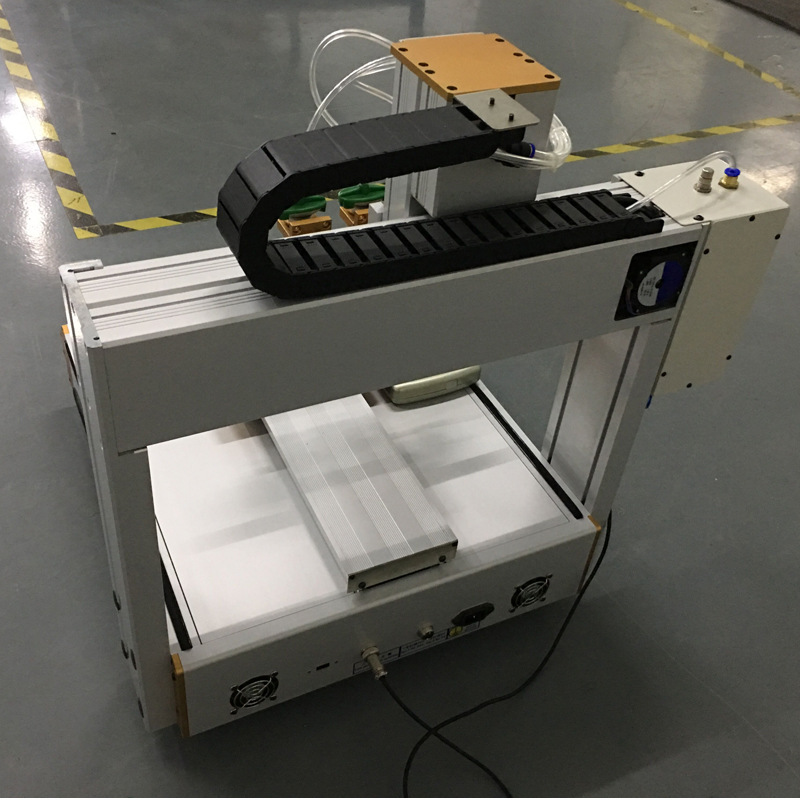

AM331-2 Automatic glue dispenser machine

  • Model: AM331-2
  • Brand: Aituo
  • Delivery: 15-20 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message

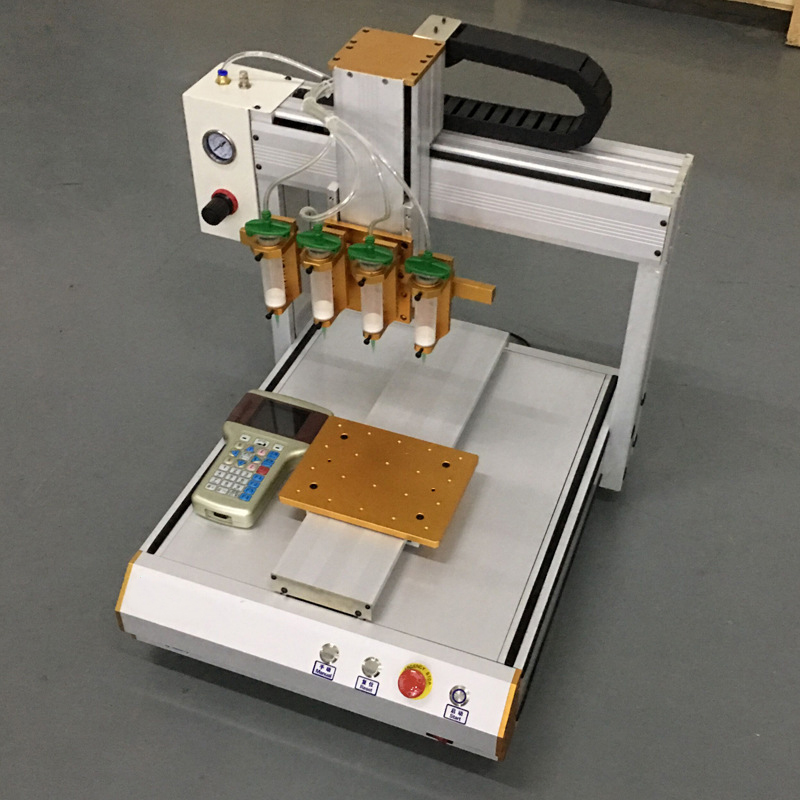

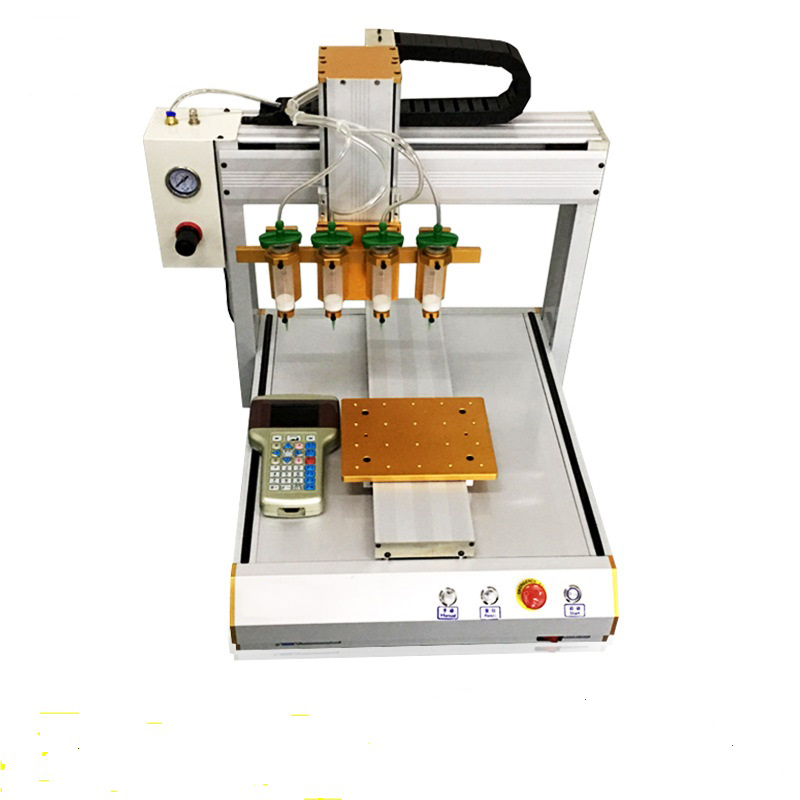

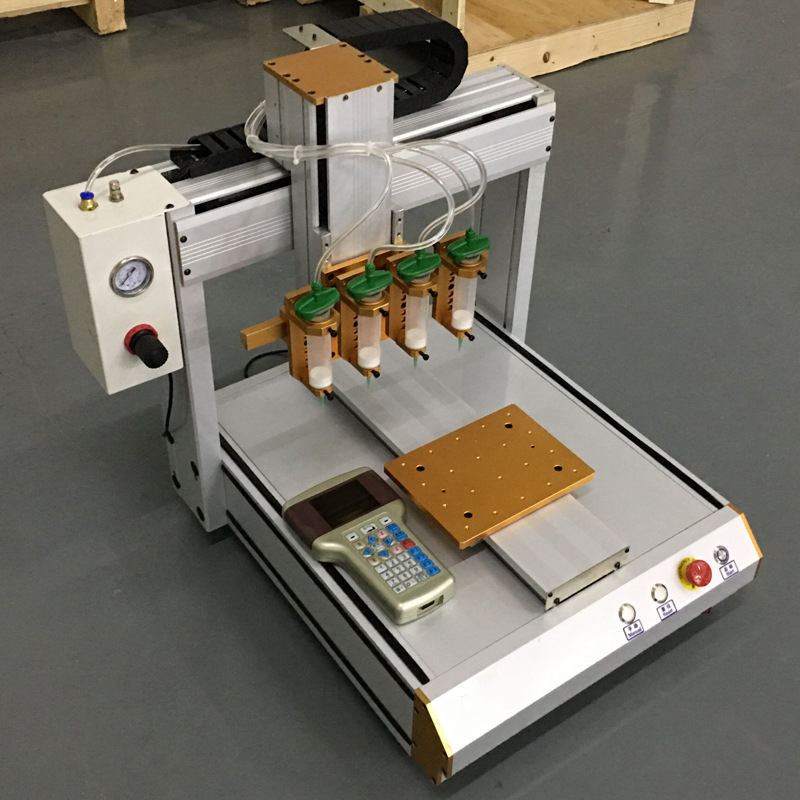

  1. Pressure regulating valve: adjust the syringe’s insidepressure, the pressure adjustment range is 0.05-0.9MPa; When adjusting, first pull out the knob, turn clockwise to increase, counterclockwise to decrease, and press back to the knob after adjusting.
  2. Controller switch: The power supply in the control box is turned on or turned off.
  3. Y-axis slider: drives the substrate to move back and forth.
  4. Pressure gauge: shows the pressure after regulation.
  5. Manual glue button: press the button, the needle out of the glue; release the button, stop the glue.
  6. X-axis: Control the needle to move left and right.
  7. Z-axis: Control the needle to move up and down.
  8. Reference plate: used to place work pieces or fixtures.
  9. Y-axis: Control the reference plate to move back and forth.
  10. Base: Internal for installing electrical control systems.
  11. Reset switch: Through this switch, the running program can be paused and returned to the origin. Teaching can be programmed after the machine is reset.
  12. The fixture hanging plate, you can install the syringe or the dispensing valve, the specific program should be determined according to the process.
  13. Emergency stop button: When the button is pressed, the program is aborted and the device stops immediately.
  14. Start/Reset/Pause button: It is the system reset switch when it is turned on or after the emergency stop is released. After reset, it is the device running switch, and the running is pause switch.

Maximum speed

300mm/s(Can be customized up to 800mm/s)

Repeat accuracy

±0.02mm-0.05mm(Can be customized within±0.02mm)

Control system

Cooperate with domestic listed companies to develop teaching hand-held control system

Drive mode

Step/servo motor(imported from Japan),synchronous belt/Screw mandrel,Linear slide-way(Taiwan brand)

Program storage

It can store 1,000 sets of processing data,and a single processing file can occupy up to 3M storage space(5,000 processing points)

File storage space

Hand-held box 256M,card remover 32M,and a single processing file can occupy up to 3M storage space(100,000 processing points)

Support document

CAD、CORELDRAW

Maximum load

Y axis/Z axis 5KG/2KG

Power supply

AC220V/110V, 50-60HZ, 350W

[video width="598" height="464" mp4="https://www.automachines.cn/wp-content/uploads/2019/09/Axis-dispensing-machine-1.mp4"][/video]



  1. Molded aluminum profile construction, beautiful appearance and strong consistency;
  2. The mechanical parts are processed by CNC to ensure the precision and consistency;
  3. The special assembly process of the synchronous pulley and the motor,combined with the new technology synchronous belt to completely solve the tension and looseness problem of the synchronous belt after long-term use;
  4. Modular assembly process, each key component and position can be dismantled separately, accidentally damaged parts can be quickly replaced.
  5. Desktop design, small footprint, suitable for batch assembly line dispensing operations.
  6. The highest speed is 400-500mm / sec, with high durability.
  7. No liquid residue and skew in the shape of the corner R,achievedbeautiful drawing.
  8. The working range is from 100mm to 400mm, and various strokes are selected according to the situation of the work site.
  9. The dispensing program file can be uploaded or downloaded via U disk, which is convenient for data management and saving.
