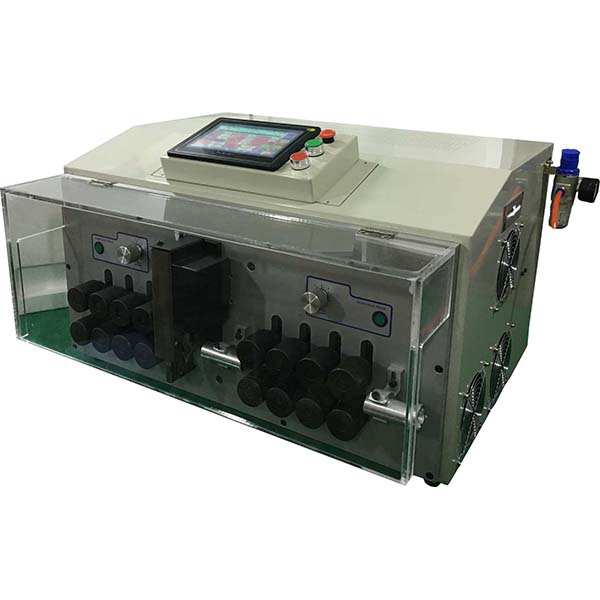

AM603-150 Automatic wire stripping and cutting machine for super thick wire

Model:AM603-150

Brand:Aituo

Delivery:7-15 working days

Packing:wooden boxes

INQUIRY NOW

×Enter your message





    Description

    1. Automatic wire cutting stripping machine, you just need to enter the cutting and stripping length, a wire prefeeder works, the wire will be cut and stripped automatically.

    2.This stripper machine has a longer stripping length , AM603-150: Head 0-150mm, Tail 0-150mm

    3. This cable making machine will be suitable for 2-150mm,MAX70mm PVC cables, Teflon cables, silicone cables, etc

    4. Highly efficeint, 2000~5000pcs/hour

    Specification

    Available wire core section           2-150mm²
    Power  1000W
    Display   Chinese/English LCD Display
    Cutting length  1~100000mm
    Stripping length  head:0-150mm,tail:0-150mm
    Cutting tolerance  ±(0.0001*cutting length)
    Max middle stripping section 16
    Max conduit diameter  18
    Suitable cable  PVC/Teflon/Glass fiber wire/steel wire strand
    Blade material     HSS=High-speed steel
    Stripping speed    5000-6000pcs/h(L=100MM)
    Drive mood      Eight-wheel drive
