Description

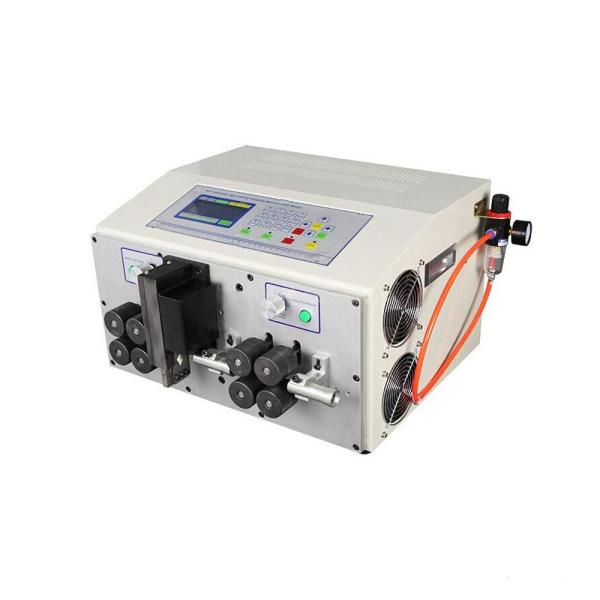

1. Automatic wire cutting stripping machine, you just need to enter the cutting and stripping length, a wire prefeeder works, the wire will be cut and stripped automatically.
2.This stripper machine has a longer stripping length , AM603-70: Head 0-150mm, Tail 0-150mm
3. This cable making machine will be suitable for 2-50mm,MAX70mm PVC cables, Teflon cables, silicone cables, etc
4. Highly efficeint, 2000~5000pcs/hour
Specification
| Available wire core section | 2-70mm² |
| Power | 1000W |
| Display | Chinese/English LCD Display |
| Cutting length | 1~100000mm |
| Stripping length | head:0-150mm,tail:0-150mm |
| Cutting tolerance | ±(0.0001*cutting length) |
| Max middle stripping section | 16 |
| Max conduit diameter | 18 |
| Suitable cable | PVC/Teflon/Glass fiber wire/steel wire strand |
| Blade material | HSS=High-speed steel |
| Stripping speed | 5000-6000pcs/h(L=100MM) |
| Drive mood | Eight-wheel drive |
Application
Accessories
