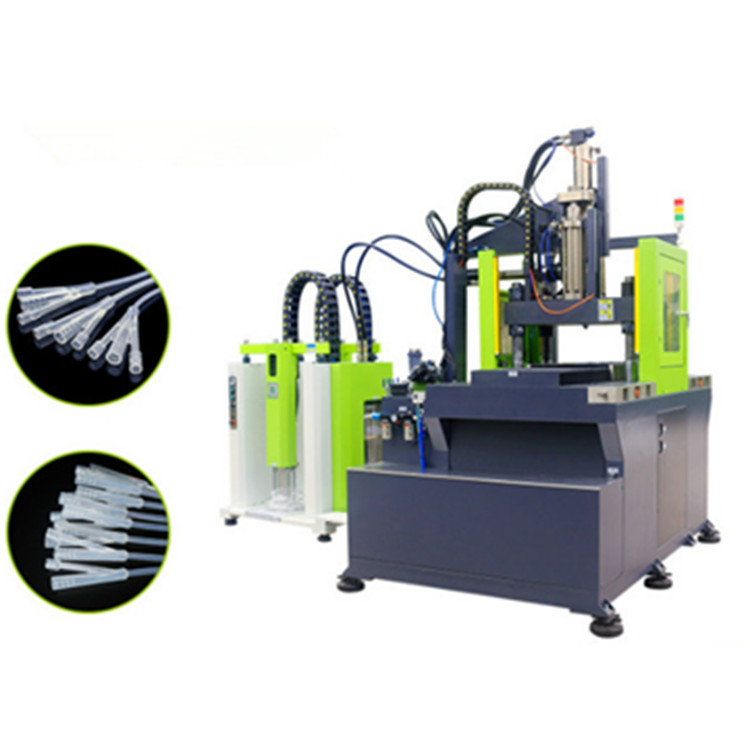

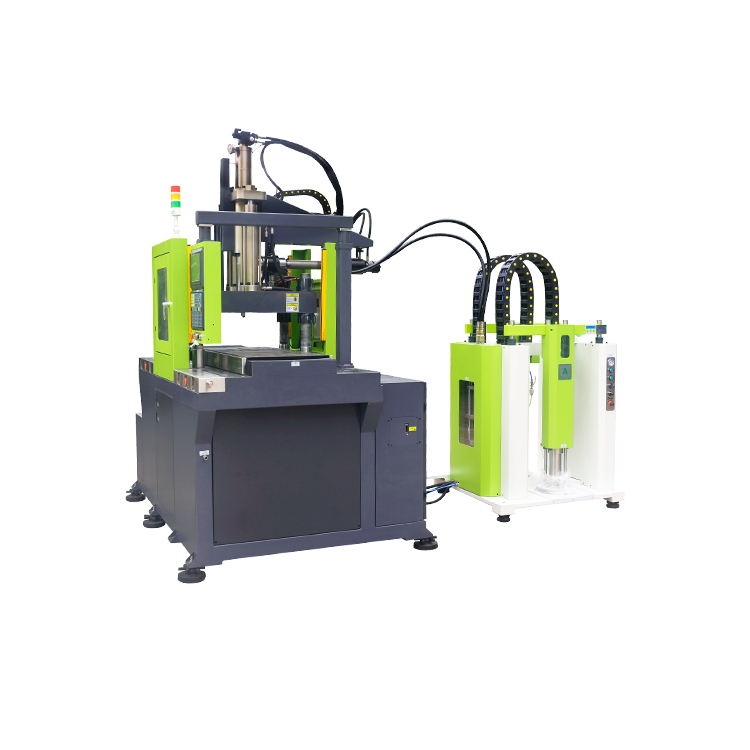

AM701-130T Vertical LSR injection molding machine

  • Model: AM701-130T
  • Brand: Aituo
  • Delivery: 10-20 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description

    Specification

     Injection Unit: L5058-2

     Shot Volume: 300g (PT6)

     Injection Rate: 100 g/s

     Injection Pressure: 700 kg/cm

     Clamping Force: 130 T

     Opening Stroke: 250-550 mm

     Tie-Bars Space: 500*580 mm

     Ejection Force: 4.3 T

     Ejection Stroke: 150 mm

     Pump Pressure: 21 Mpa

     Motor Power 12 KW(servo motor)

     Machine Dimension 2.4*1.6*3.4 m

     Machine Dimension: 1.2*1.2*2.0 m

    Machine Weight: 5.3 + 0.6 T
