1.Features:
LCD display control interface. Easy to operate and stable performance. Fast feed/cut/strip/crimp/twist wire, high precision, fast speed, ultra-mute. The length of sending/cutting/stripping ,the twist tension and speed, the crimping delay time,all of them can be controlled by digital configured.
2.Functions:

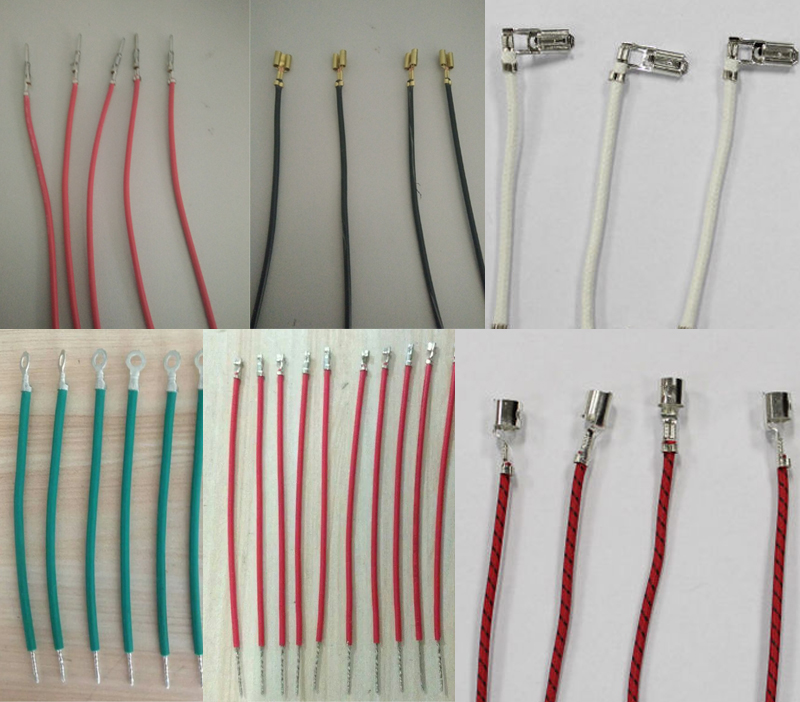

Wire cutting, single-end stripping, both -end stripping, single-end crimping, single-end twisting, and single-end half-stripping.
|
Model |
AM201 |
|
Size |
700*600*1050mm |
|
Weight |
240kg |
|
Display |
Touch screen |
|
Voltage |
AC220/50Hz ,AC110/60Hz |
|
Power |
750W |
|
Cutting Length |
25mm—9999mm |
|
Cutting Tolerance |
+/-0.1mm |
|
Stripping Length |
0.1mm-10mm |
|
Available Wire |
AWG14#-AWG32# |
|
Cutter material |
Tungsten steel/alloy metal |
|
Crimping Force |
1.5T ( 2.0T available) |


Accessories
