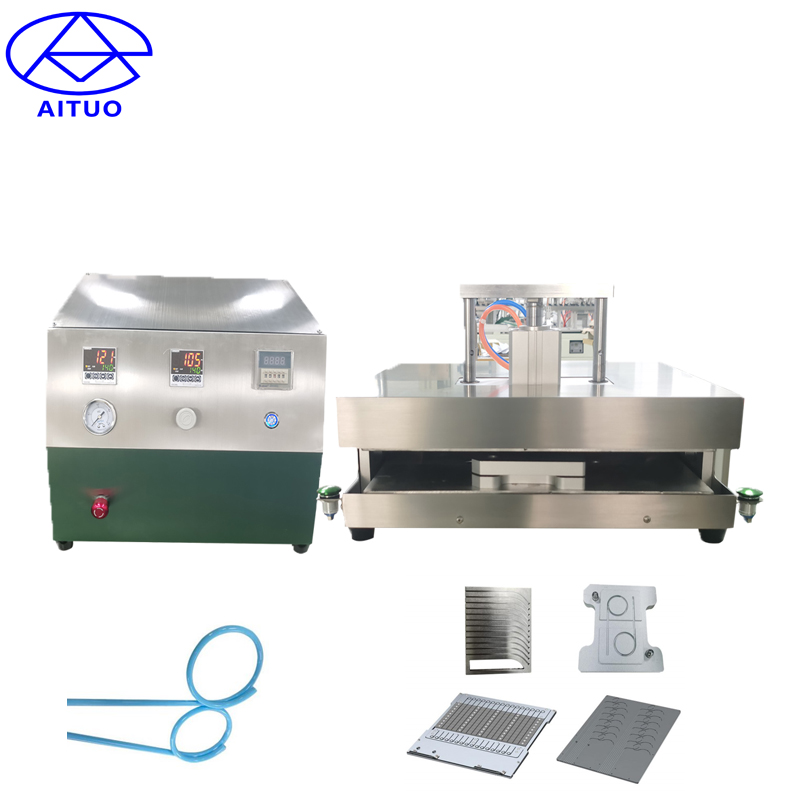

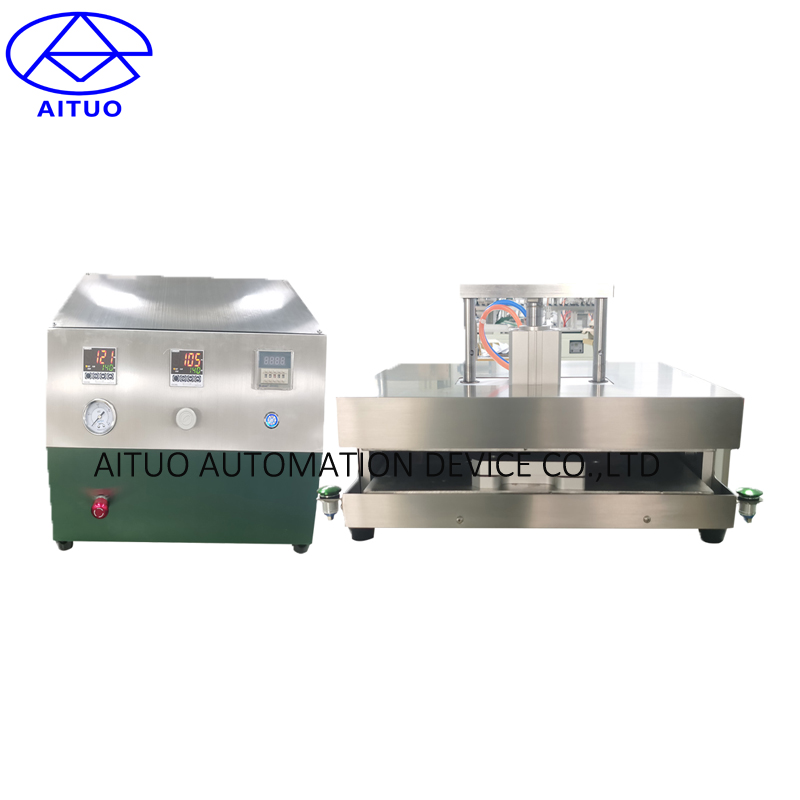

AM20601 Hot forming machine

  • Model: AM20601
  • Brand: Aituo
  • Delivery: 7-10 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

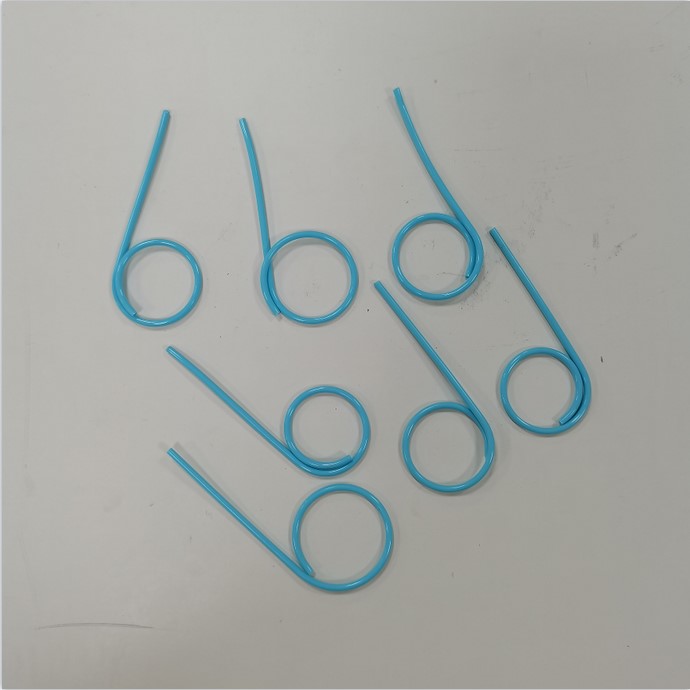

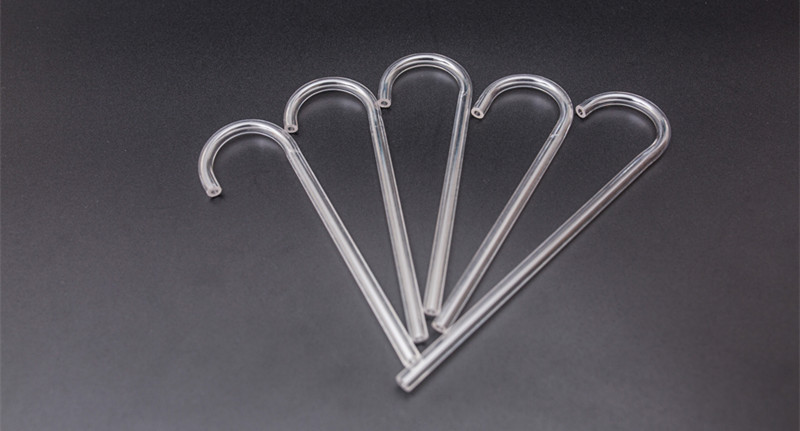

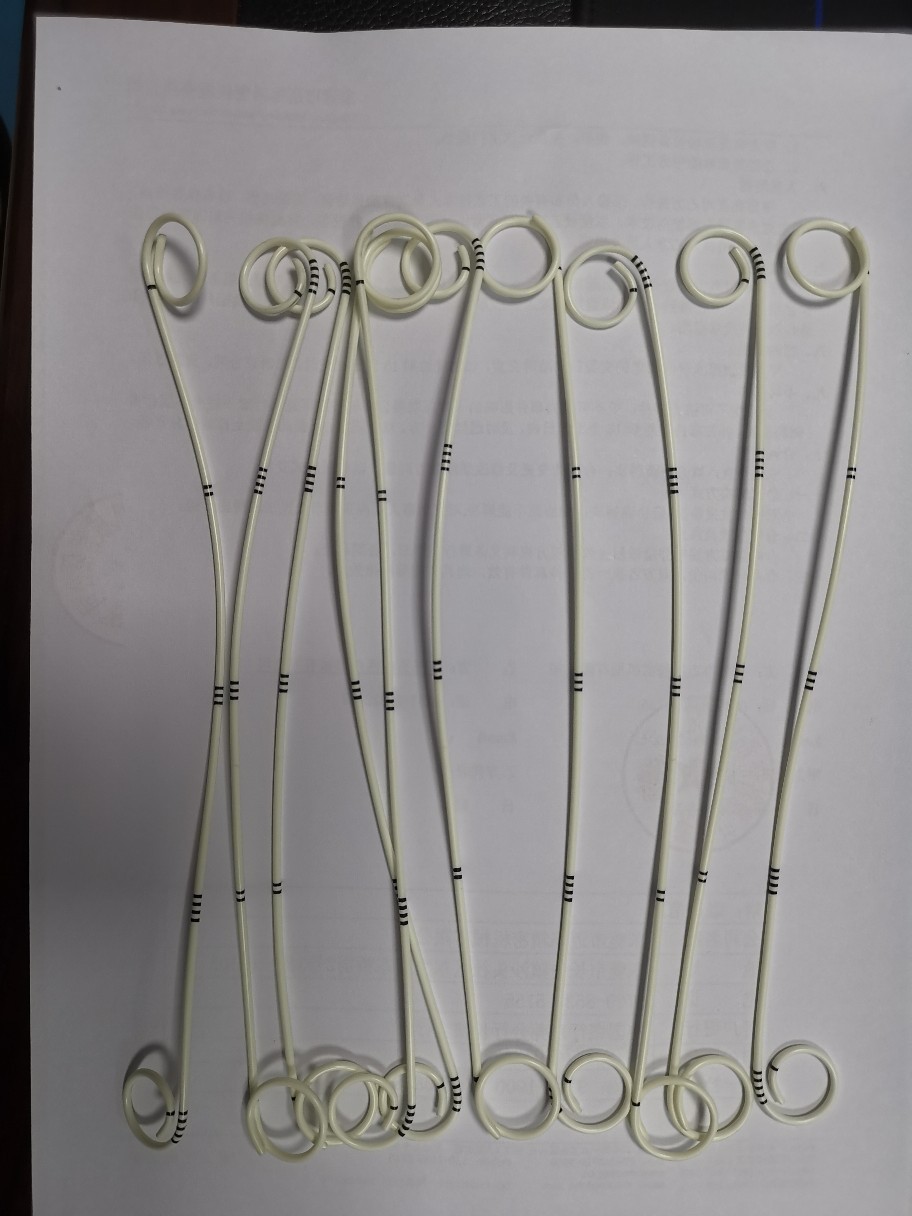

    The hot forming machine produced by our company is dedicated to the forming of medical plastic catheters. The principle of the machine is to conduct heat to the mold through the heating plate to hot-forming the catheter.

    Specification:

    Power supply: AC 220V, 16A, 50HZ
    Ambient temperature: -20℃ +50℃
    Working pressure: 0.5-0.8 Mpa
    Heating power: ≤2000 w
    Temperature range: 50-180 degrees
    Fixture pressing: 10-50 N
    Pipe diameter processing range: 4F-14F
    Mold size: 380*250 mm
    Applicable materials: PVC, PU, HDPE, LDPE, PP, PEBAX, etc.
    Weight: 30 KG
    Machine size: 860*400*300 mm (width*length*height)

    Application: PVC, PU, HDPE, LDPE, PP, PEBAX, etc.

    [video width="1280" height="720" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20601-hot-forming-machine.mp4"][/video]

    Accessories: Shaping molds
