Fully automatic single head end plug shell crimping machine

  • Brand: Aituo
  • Delivery: 5-10 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description

    This machine is suitable for AWG16-AWG18 wire cutting, stripping, crimping and shell inserting.

    Features:

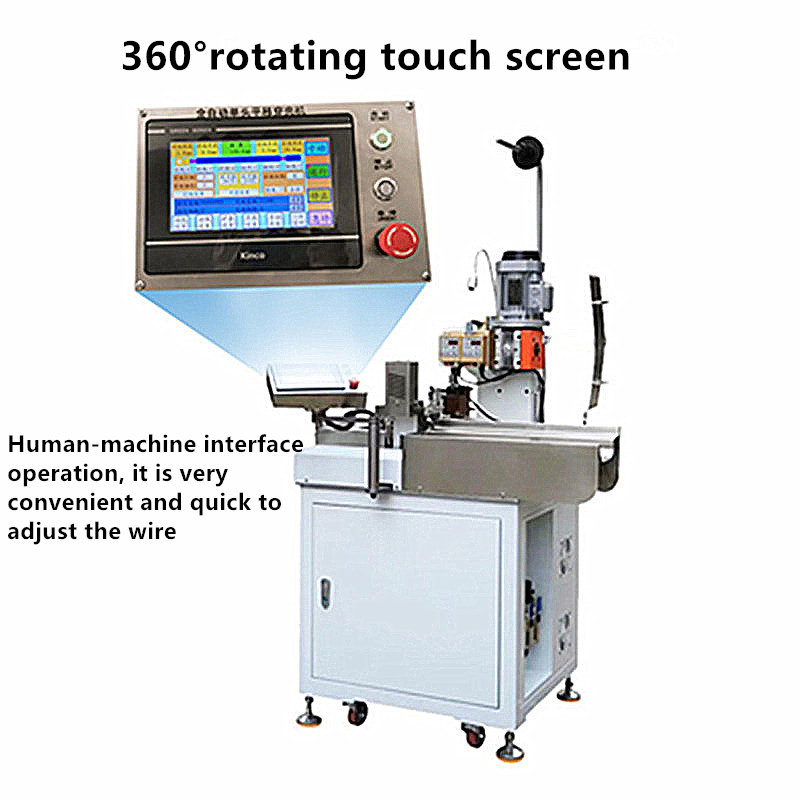

    • adopt 360° rotating touch screen, Human-machine interface operation, it is very convenient and quick to adjust the wire

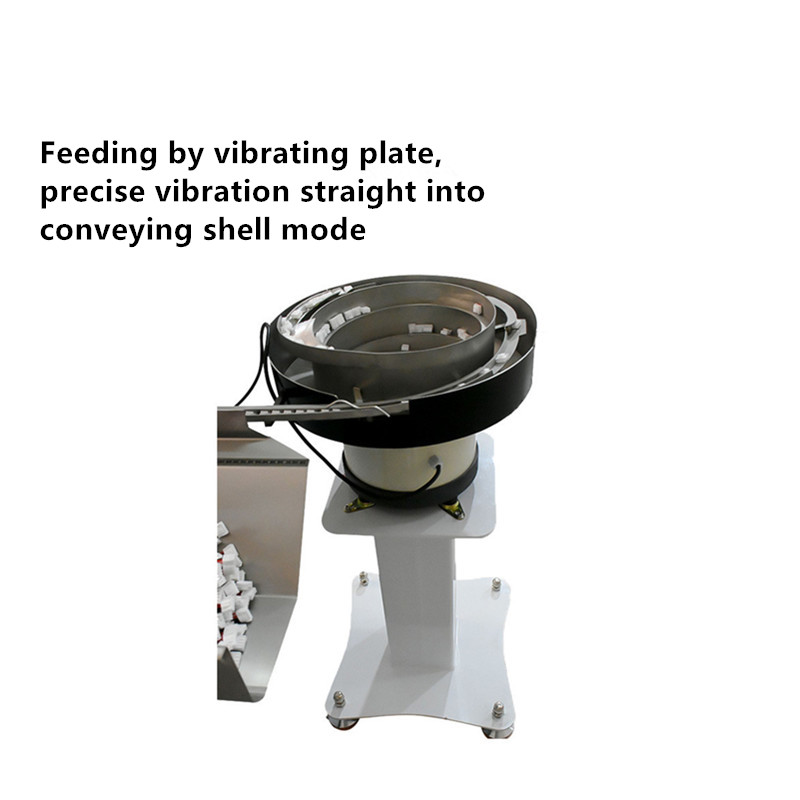

    • adopt feeding by vibrating plate, precise vibration straight into conveying shell mode

    Specification

    Name

    Fully automatic single head end plug shell crimping machine

    Function

    Wire cutting, double-end stripping, single-end crimping, single-end shell inserting

    Single wire processing range

    AWG16-AWG18,or depend on your wire

    Capacity

    About 800PCS/H (3200 bit),the capacity of the short wire is different from the long wire’ capacity

    Cutting length

    The shortest length is 55MM, the longest length is 300/400/500MM, the long wire can be customized

    Scope of application

    Batteries, Appliances, JianYi, Transformers

    Machine size

    800*700*1500MM

    Weight

    About 300kg

    Additional devices that can be installed

    Twisting device
