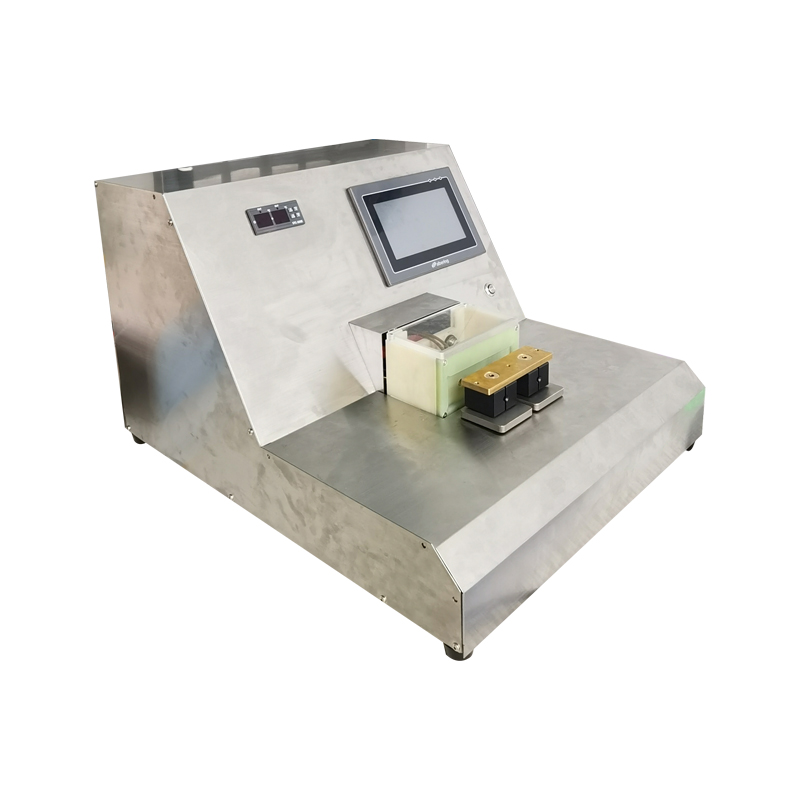

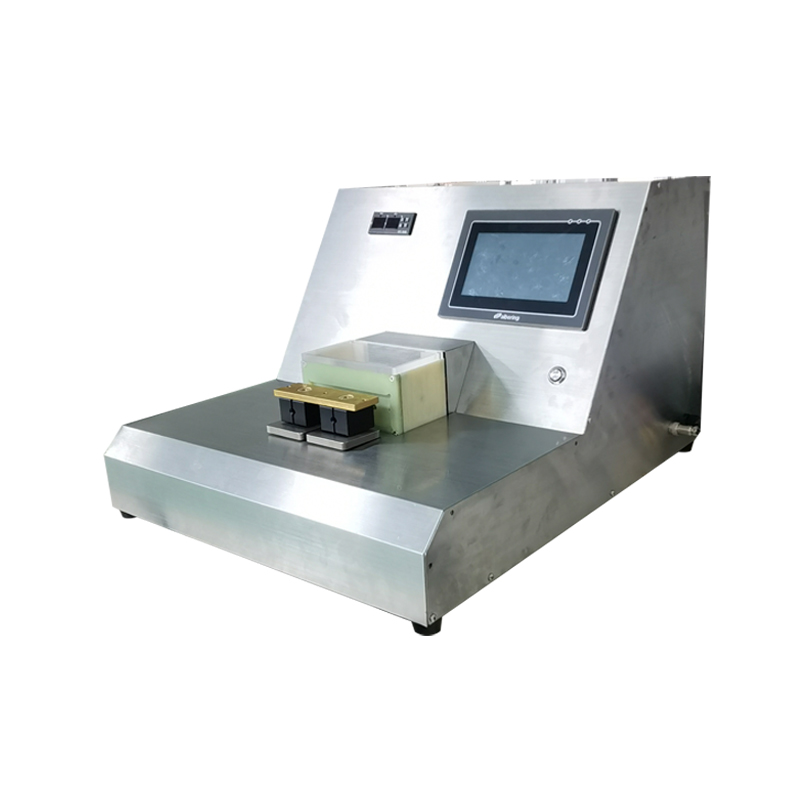

AM20501 High frequency medical catheter tip-melting machine

  • Model: AM20501
  • Brand: Aituo
  • Delivery: 7-10 working
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

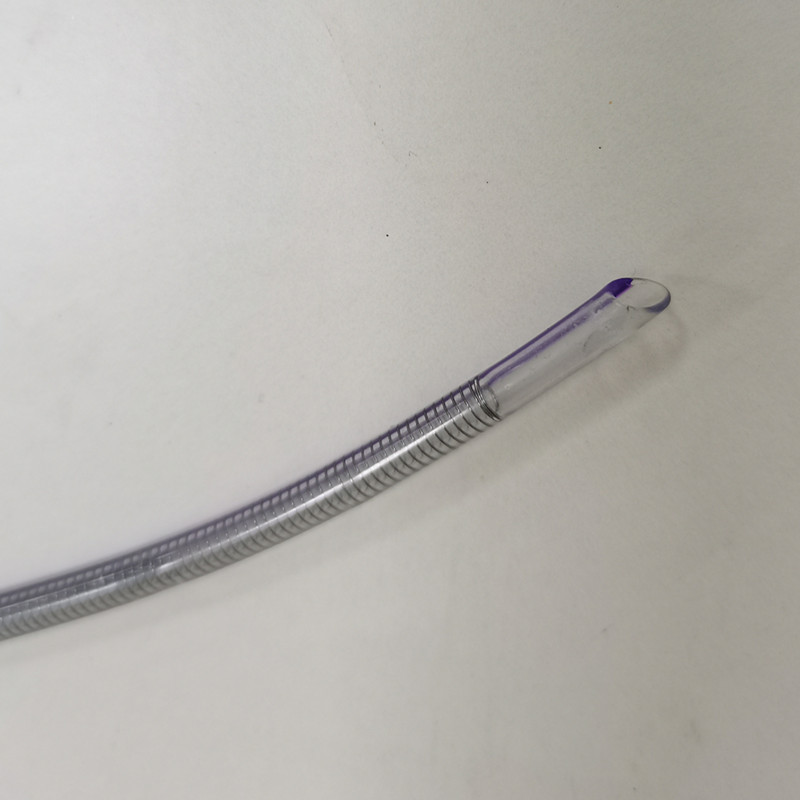

    It is specially used to heat-melt and passivate the head of medical plastic catheter to prevent defects such as scratches.
    main feature:
    1. The integrated compact host design minimizes the size of the equipment and facilitates production area planning.
    2. High precision, low defect rate. It can not only reduce human error, but also improve the production capacity of standard products and improve the working environment of employees.
    3. Through high frequency heating, circulating cold water system cooling, forming in one time.
    4. Suitable for thermoplastic materials such as PVC/PE/PTFE.
    5. The forming mold can be customized and replaced.

    Equipment parameters

    Model: AM20501
    Working voltage: single-phase AC 220V/10A/50HZ
    Power: 0.15 KW
    Air pressure: 0.5-0.8 Mpa
    Ambient temperature: -20℃+50℃
    Welding speed: 600-1200 PCS/H
    Weight: 35 KG
    Size: 600×500×380 mm

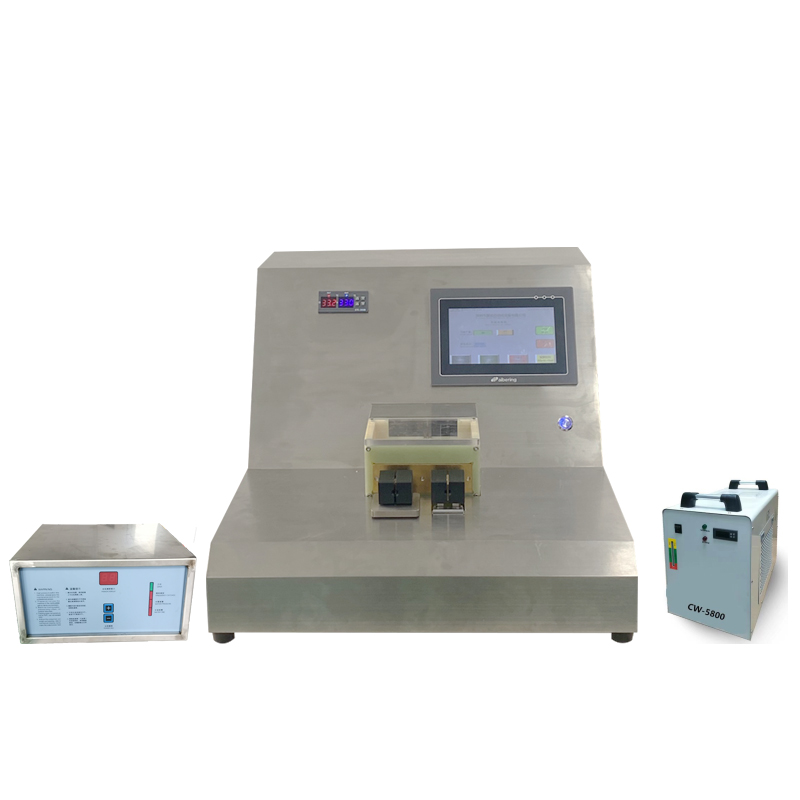

    High frequency machine
    Voltage: single-phase AC 220V/10A/50HZ
    Power: 3 KW
    Size: 300X300X160 mm

    Cooling water machine
    Voltage: single-phase AC 220V/10A/50HZ
    Power: 1.2KW
    Size: 600X540X30mm

    Technical parameters

    Propulsion stroke: 10 cm
    Station: double station (Single station operation is also optional)
    Diameter range: 1.0-10.0mm
    Heating power rate: ≤3KW (adjustable)
    Temperature range: 50-500 ℃
    Coil specifications: customizable (non-contact)
    Applicable materials: PVC, PU, HDPE, LDPE, PP, PA, PEBAX, FEP, etc
    application products: tracheal intubation, sputum suction catheter, gastric catheter, feeding catheter or other types of plastic catheters, etc.



    Applicable materials: PVC, PU, HDPE, LDPE, PP, PA, PEBAX, FEP, etc
    application products: tracheal intubation, sputum suction catheter, gastric catheter, feeding catheter or other types of plastic catheters, etc.



    [video width="960" height="544" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20501.mp4"][/video]

    Accessories: Mold
