AM20401 Hot-melt tip forming machine

  • Model: AM20401
  • Brand: Aituo
  • Delivery: 7-10 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

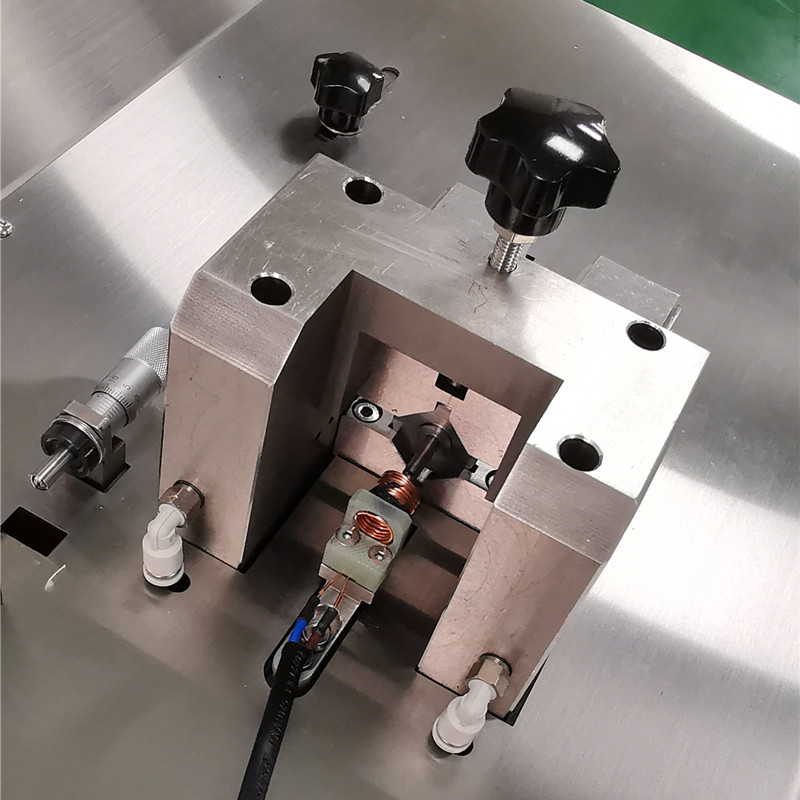

    This equipment is mainly used for post-processing of medical plastic catheter ends. It adopts feeding by hand and consists of three stations: clamping components, mold clamp fixing components, coil heating components, etc. The equipment has a compact structure, composite material welding, butt joint, catheter end rounding, sealing and tip forming. The mold is heated by electromagnetic induction, and the catheter is clamped and pushed into the mold with an air cylinder to form the end of the catheter. The user can input parameters through the touch screen to adjust the process.

    Specification:

    Equipment parameters:

    Model: AM20401
    Working voltage: AC 220V/10A/50HZ
    Power: 0.3KW
    Air pressure: 0.5-0.8Mpa
    Ambient temperature: -20℃+50℃
    Welding speed: 300-600 PCS/H
    Weight: 20KG
    Size: 500×520×370mm

    Technical parameters:

    Fixture clamping: 2-20N
    Jig advancement: 2-15N
    Diameter range: 1.0-10.0mm
    Tip length: 0.5-25mm
    Temperature range: 50-500 ℃
    Applicable materials: PVC,PU,HDPE,LDPE,PP,PA,PEBAX,FEP, etc.

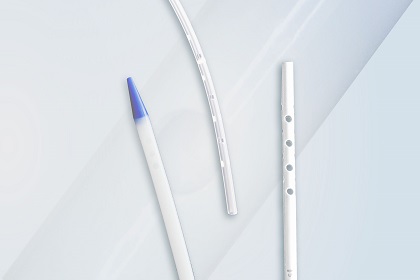

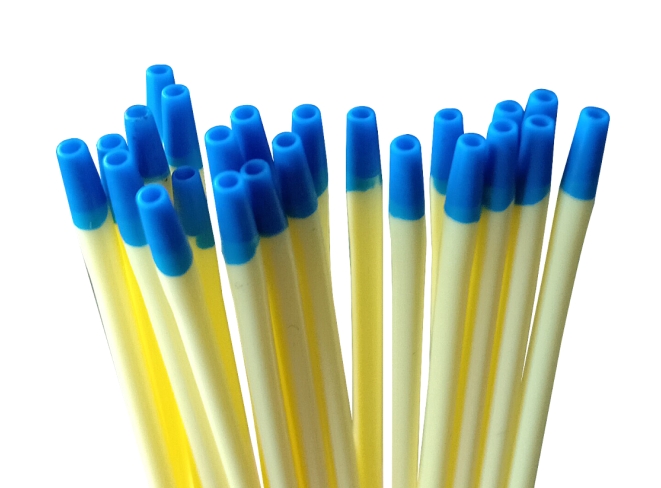

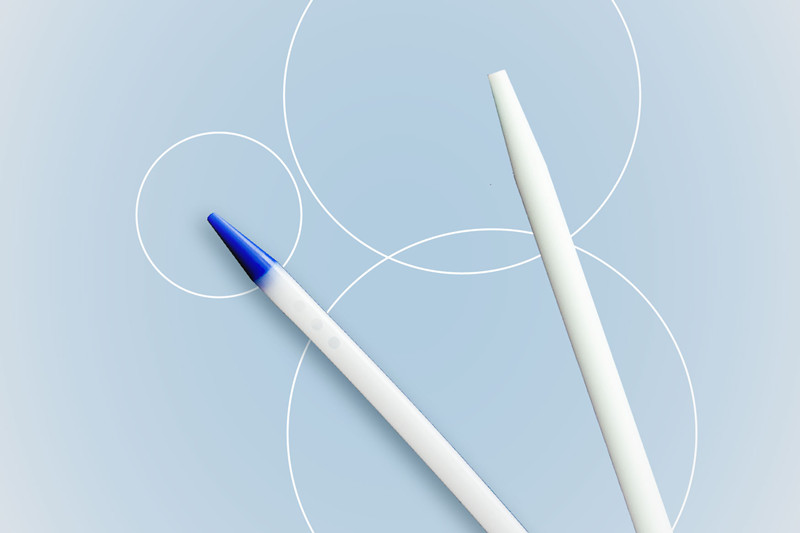

    Application products: Central venous catheter, dialysis catheter, catheter sheath,dilation catheter, PICC catheter, drainage

    Application:

    Applicable materials: PVC,PU,HDPE,LDPE,PP,PA,PEBAX,FEP, etc.
    Application products: Central venous catheter, dialysis catheter, catheter sheath,dilation catheter, PICC catheter, drainage

    [video width="960" height="544" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20401.mp4"][/video]

    Accessories: Mold
