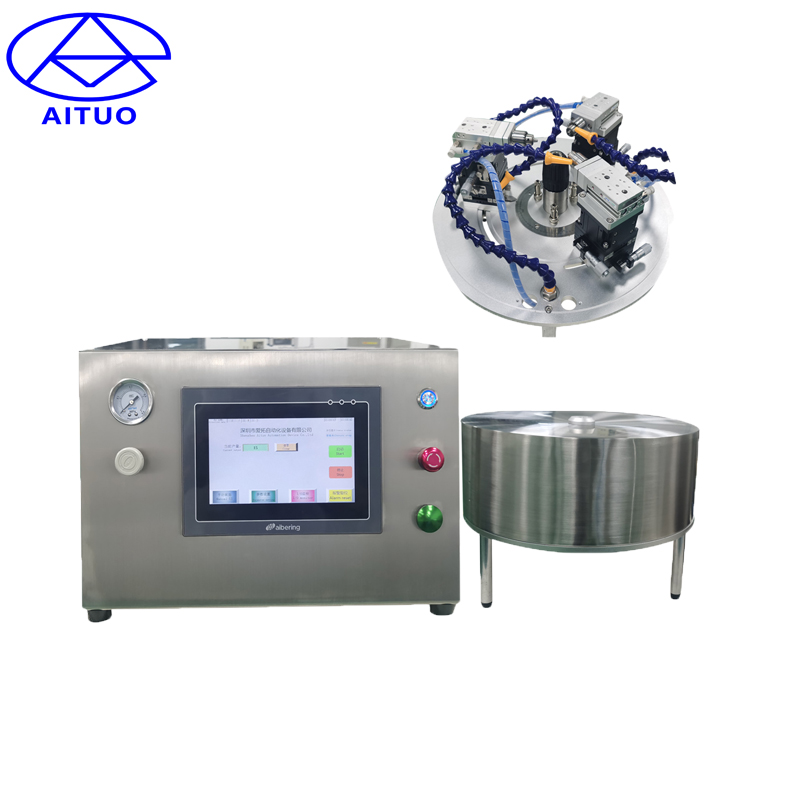

AM20303 Anesthetic tube three hole drilling machine

  • Model:AM20303
  • Brand: Aituo
  • Delivery:5 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message





    Anesthetic tube three hole drilling machine is specially used for punching medical plastic catheter's hole. It works by heating the tool to drill hot melt holes in the catheter.

    Funtures:

    1- Fast air cooling.
    2- Fast changing molds and cutting tools.
    3- Simple operation, one-key start.
    4- High-frequency heating, controlled by PLC,touch screen with man-machine visual interface operation
    5- High-precision (0.02mm process) three-dimensional adjustment of the punching position.

    Power supply: AC 220V, 10A, 50HZ
    Ambient temperature: -20℃ +50℃
    Working pressure: 0.5-0.8Mpa
    Heating power: ≤360w
    Adjustment accuracy: 0.02mm
    Tool clamping: three-jaw chuck
    Number of tools: 3
    Tool range: 0.1-0.3mm
    Tool adjustment angle: three-way 90 degree free adjustment
    Adjustment stroke: X axis: ±5mm, Y axis: ±5mm, Z axis: ±5mm
    Applicable materials: PVC、PU、HDPE、LDPE、PP、PEBAX, etc.
    Weight: 22KG
    Machine size: 860*400*280mm (width*length*height)

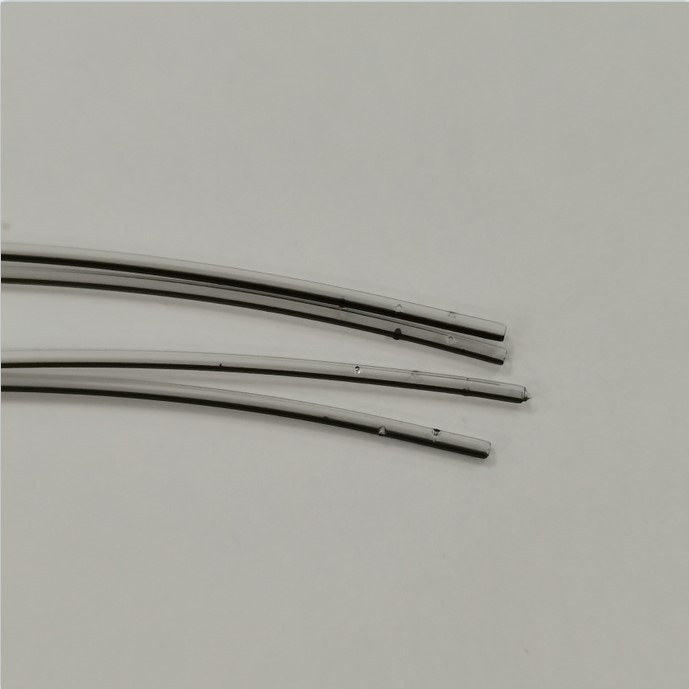

    Application

    [video width="1280" height="720" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20303-Anesthetic-tube-three-hole-drilling-machine.mp4"][/video]

    Accessories
