AM20306 U-shaped hot punching machine

  • Model:AM20306
  • Brand: Aituo
  • Delivery:5 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message





    Its working principle is that the medical catheter fastened well by using the fixture which is made of HT62, after it was heated by the industrial-grade hot air blow to a specific temperature, the cylinder begin to output power ,while tools is moved down and guided via the slideway , then punch the U-shaped to the medical catheters.

    Feature:

    1- The white steel knives are easy to replace, safe and durable.
    2- Industrial hot air blower heating, uniform heating, fast speed.
    3- The heating temperature is controllable, and a variety of temperatures are available.
    4- The thermostat controls the temperature, and the constant temperature is accurate.
    5- Simple operation, button control, with emergency stop button.
    6- Compact structure, guided by the sliding block and slide rail, and the punching accuracy is guaranteed.

    Power supply: AC 220V, 10A, 50HZ
    Ambient temperature: -20℃ +50℃
    Working pressure: 0.5-0.8Mpa
    Equipment power: 2.1Kw
    Power of hot air blower: 2KW

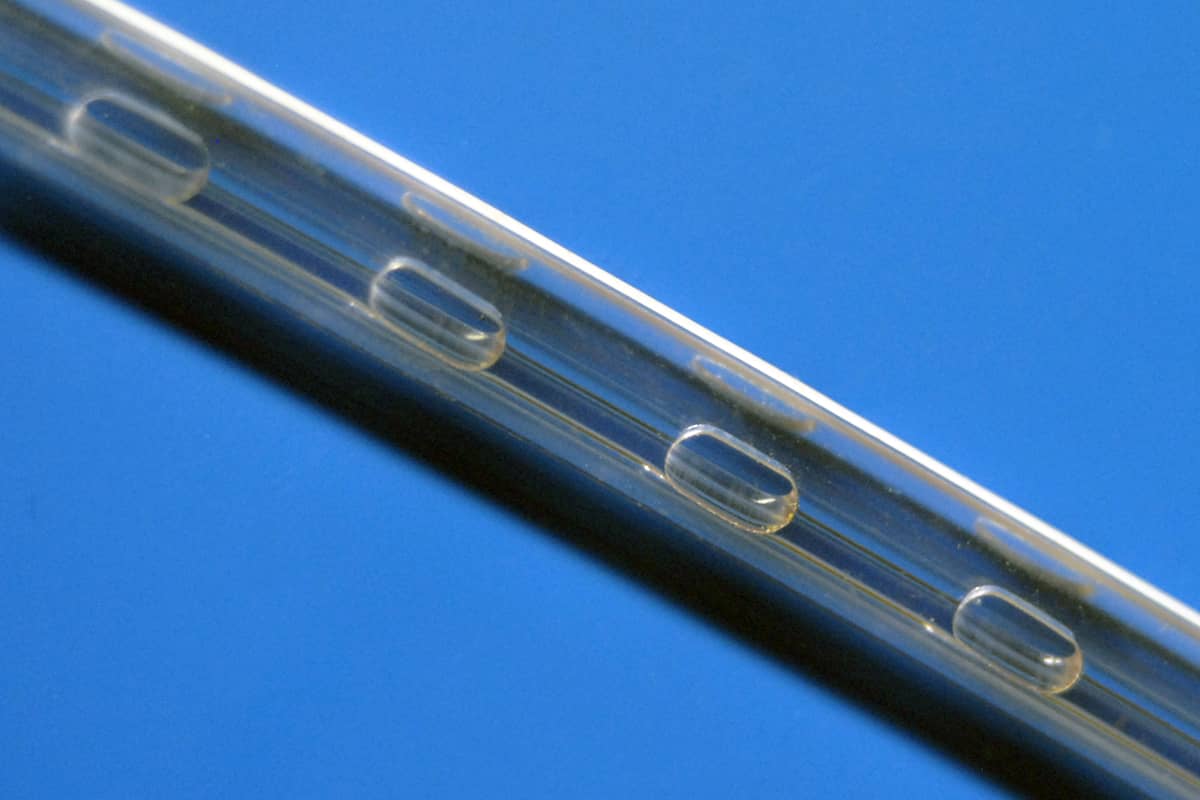

    Length of U-shaped hole: ≤6mm
    The inner diameter range of the processing tube: inner diameter φ3mm-φ16mm
    Applicable materials: PVC, PU, TPU, HDPE, LDPE, PP, PEBAX, etc
    Weight: 42KG
    Machine size: 460mm*600mm*495mm (length * width * height)

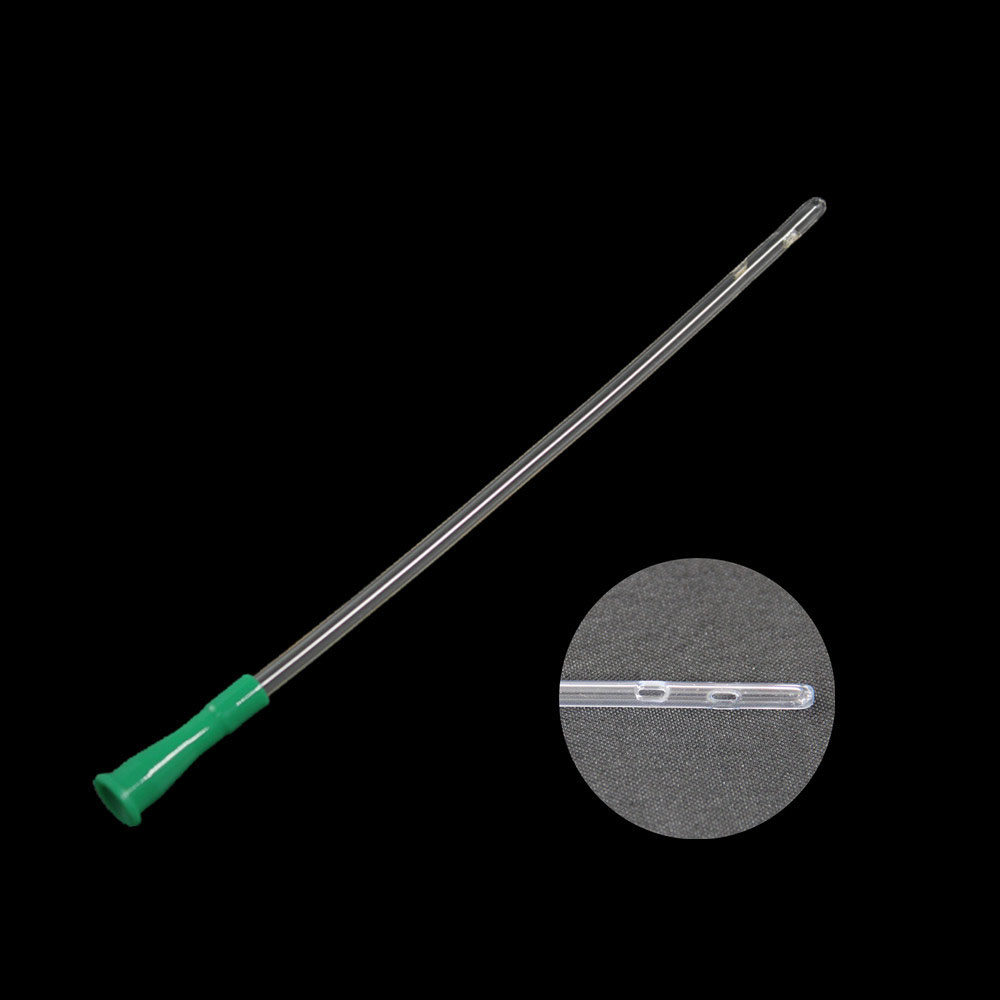

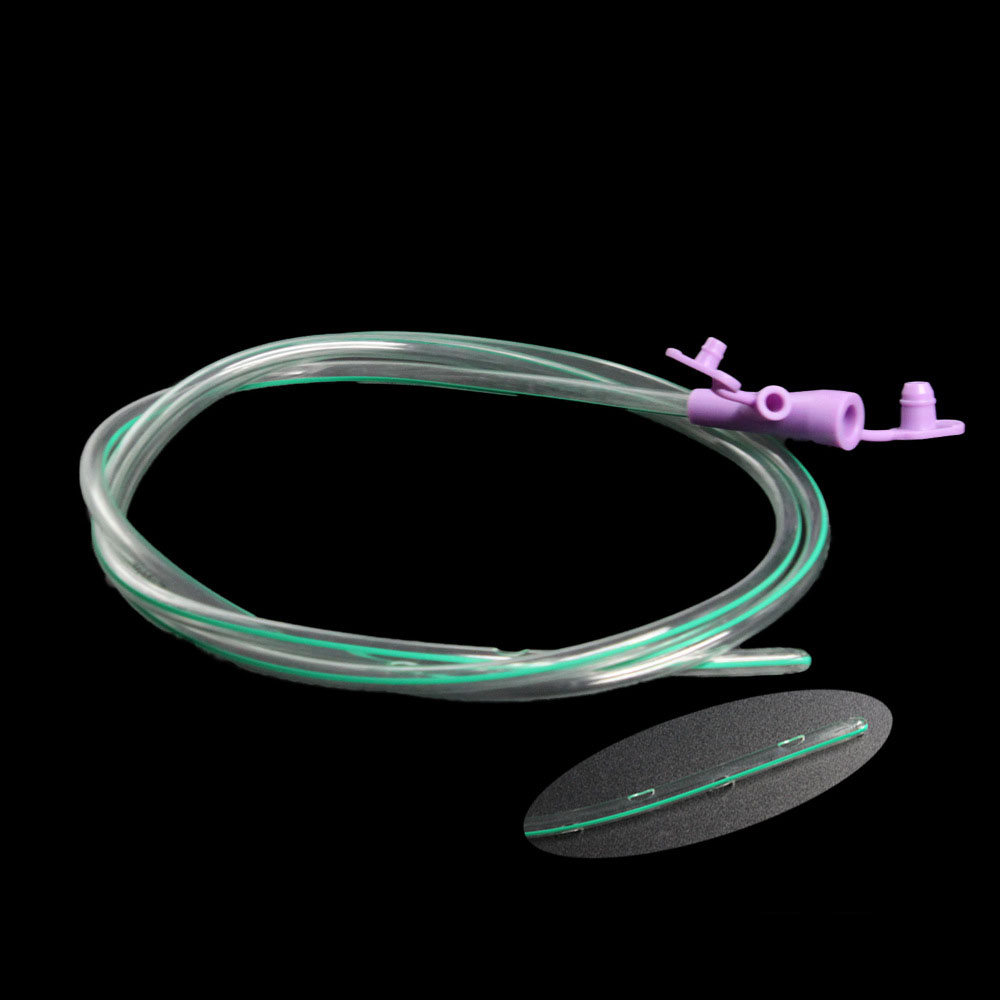

    Application

    [video width="720" height="1280" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20306-U-shaped-hot-punching-machine.mp4"][/video]
