AM20101 Plastic catheter drilling hole machine(Single hole)

  • Model: AM20101
  • Brand: Aituo
  • Delivery: 5 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message

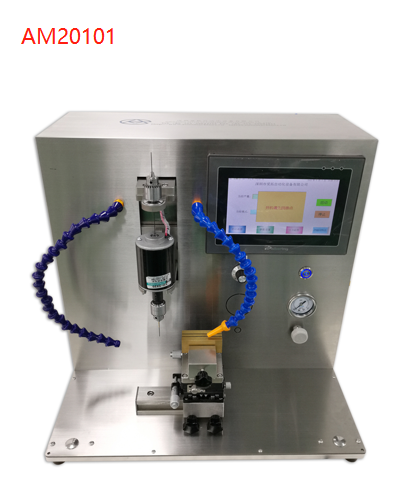

    This equipment is mainly used for punching medical plastic catheters. It adopts manual feeding and consists of two stations, one is a fine-tuning platform, the other is a Z-axis assembly. The equipment has a compact structure. The tool holder adopts a three-way movable drill chuck, which can adapt to a hollow knife of 0.3-4mm. Equipped with reset ejection structure, the waste is ejected from the knife when resetting. The punching direction and position can be adjusted freely.

    Model: AM20101
    Working voltage: AC220V/10A/50HZ
    Power: 0.4 KW
    Air pressure: 0.5-0.8 Mpa
    Ambient temperature: -20 ℃+50 ℃
    Punching speed: 500-600 PCS/H
    Weight: 20KG
    Size: 350×450×423 mm

    Fine-tuning platform accuracy: 0.01mm
    Motorized spindle speed: 0~6000RPM stepless speed regulation
    Motorized spindle runout: ≤±0.03mm
    Z-axis module stroke: 100mm, photoelectric limit
    Z-axis module accuracy: ±0.02m
    Fine-tuning platform stroke: X axis: ±6.5mm, Y axis: ±6.5mm
    Hole size range: 0.3-4.5mm
    catheter diameter range: 1.5-6.0mm
    Applicable materials: PVC, PU, HDPE, LDPE, PP, PA, PEBAX, FEP, etc

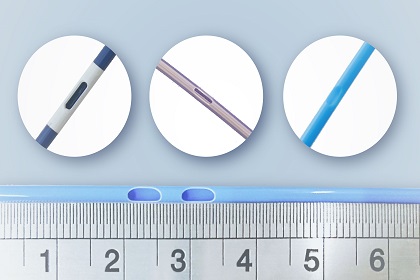

    Application products: Medical catheter and other plastic catheter

    Application
