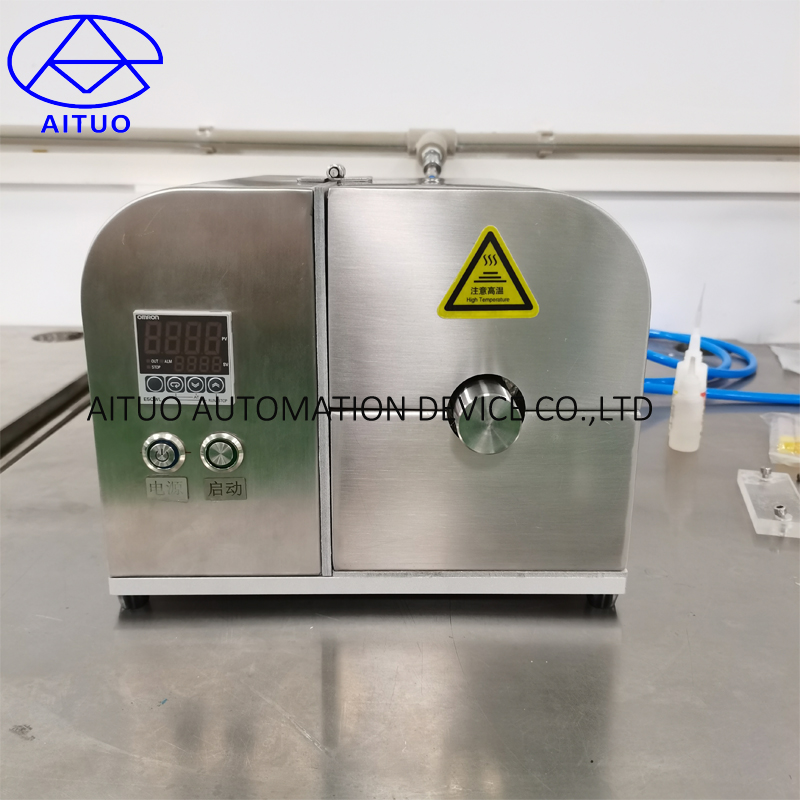

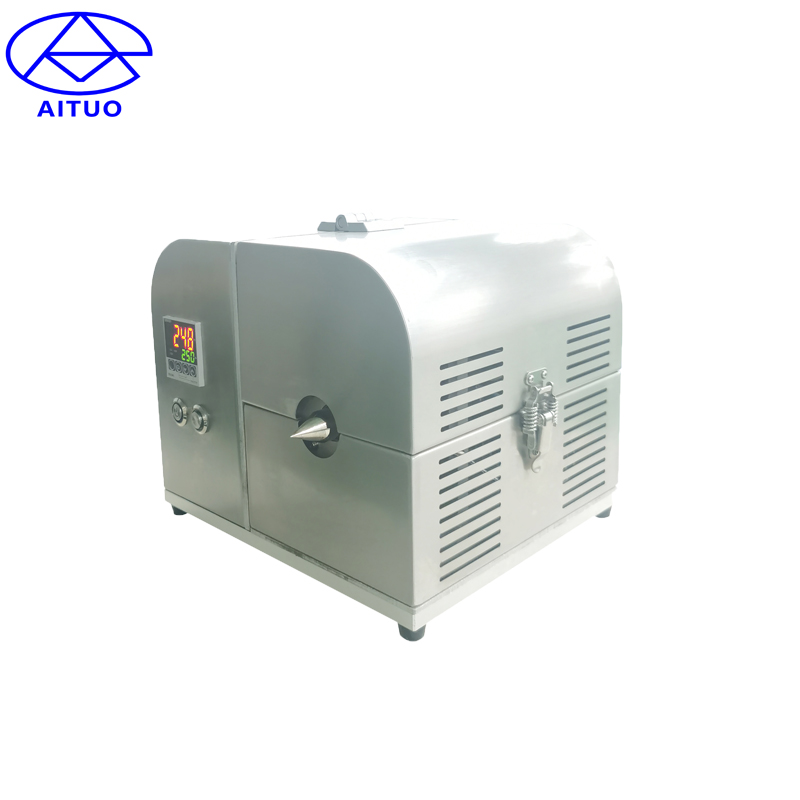

AM20701 Catheter flaring machine

  • Model: AM20701
  • Brand: Aituo
  • Delivery: 7-15 working days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description:

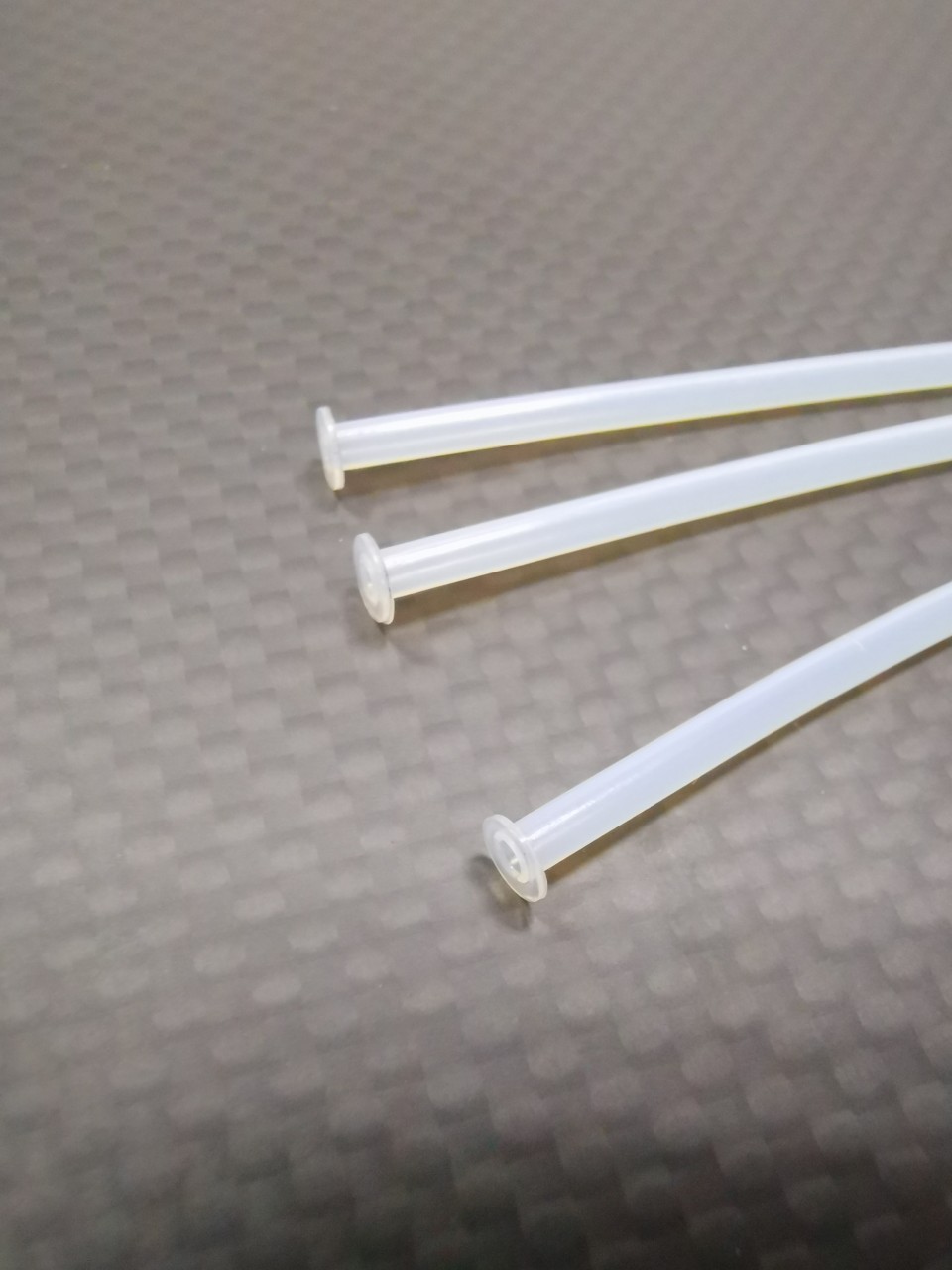

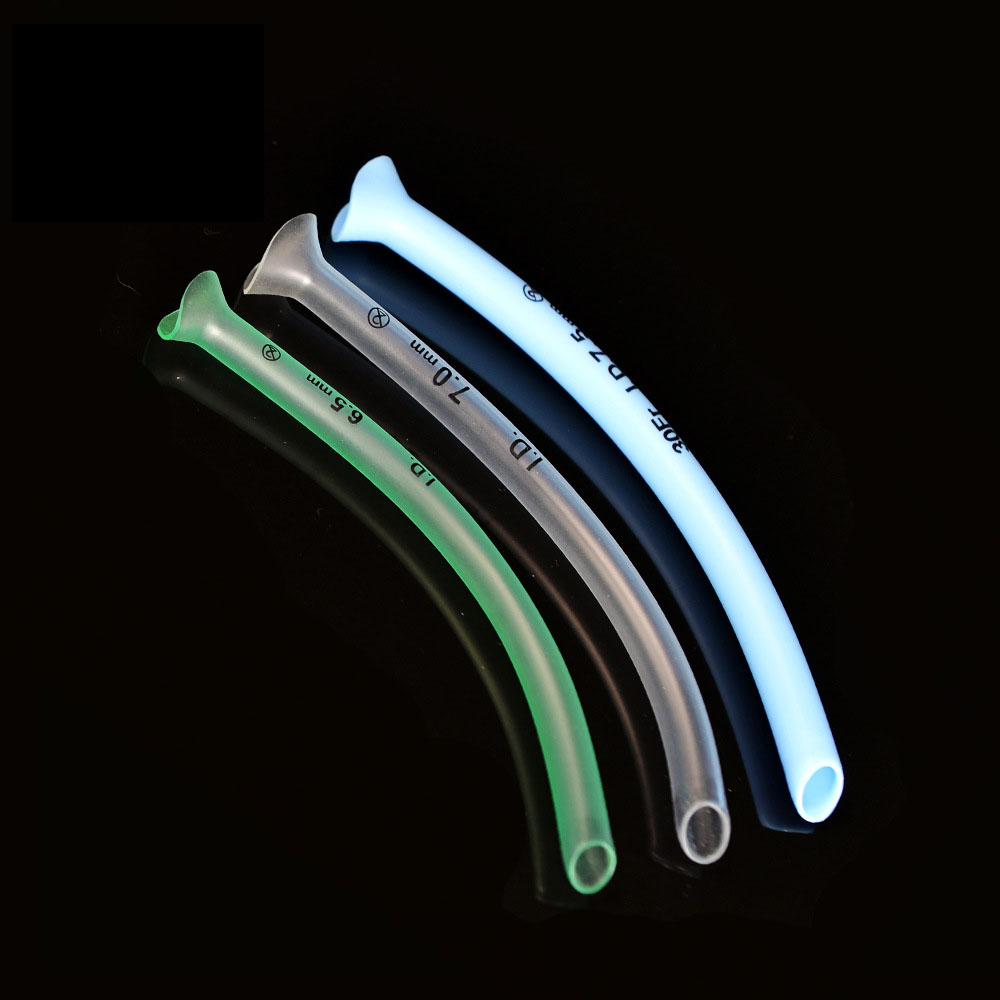

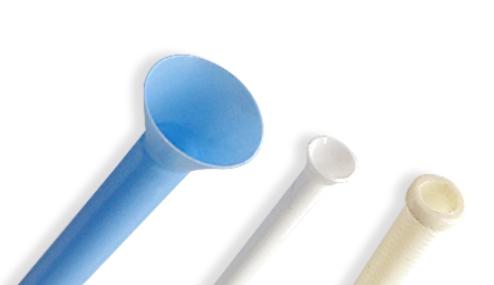

    Catheter flaring machine produced by our company specially used for flaring of medical plastic catheters. The principle of the machine is that the heating cylinder transmits heat to the stainless steel mold, which flares the end of the medical plastic catheter.

    1- The stainless steel mold is easy to replace, safe and durable.
    2- Ceramic electric heating coil heating, fast speed.
    3- The heating temperature is controllable, and a variety of temperatures are available.
    4- The thermostat controls the temperature, and the constant temperature is accurate.
    5- Simple operation, one-key start.
    6- Fan heat dissipation ,ensure that the temperature of the enclosure is less than 42 degrees.

    Specification:

    Power supply: AC 220V,10A,50HZ
    Ambient temperature: -20℃ +50℃
    Heating power: ≤400 w
    Mold temperature range: 50-300 degrees
    Flaring angle: ≤160 degrees
    Catheter inner diameter processing range: inner diameter φ1.5mm-φ15mm
    Applicable materials: PVC, PU, TPU, HDPE, LDPE, PP, PEBAX, etc
    Weight: 9.5 KG
    Machine size: 280mm*250mm*216mm (length * width * height)

    Application: PVC, PU, TPU, HDPE, LDPE, PP, PEBAX, etc

    [video width="1920" height="1080" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20701.mp4"][/video]

    Accessories: Flaring molds
