AM20104 Four-axis CNC punching machine for plastic catheter

  • Model:AM20104
  • Brand: Aituo
  • Delivery:5 working days
  • Warranty:1 years

INQUIRY NOW

×Enter your message

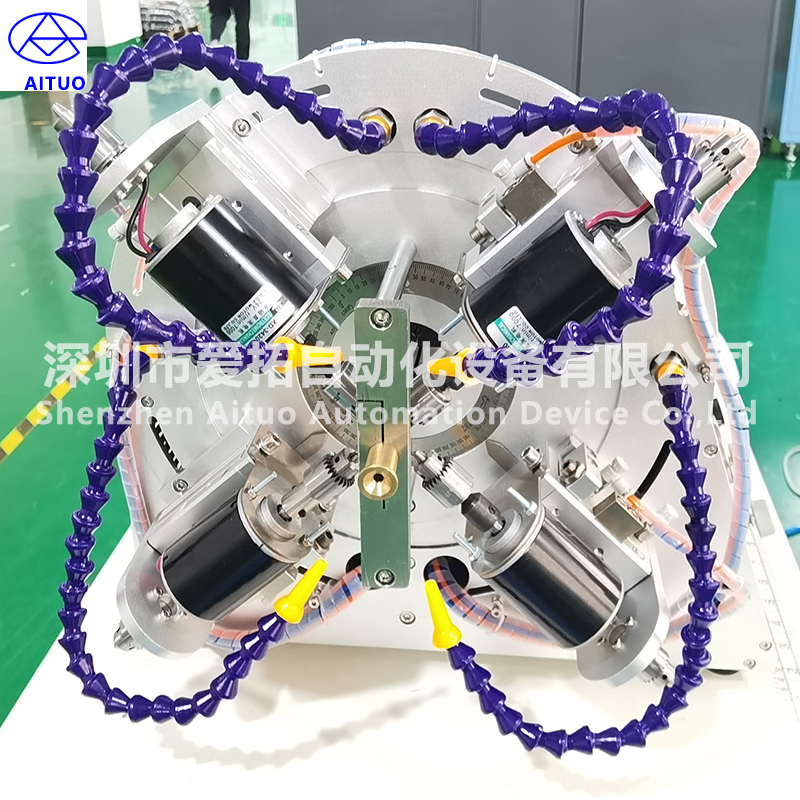

    This equipment is mainly used for drilling medical plastic catheters. It adopts manual feeding and consists of clamping,handling and a four-way punching component. The equipment has a compact structure. The tool holder adopts a 4-way spindle drilling, which can adapt to processing tools of 0.3-4.5mm. Equipped with reset ejection structure, the waste is ejected from the knife when resetting. The punching stroke, punching quantity, punching angle and spacing can be adjusted freely.

    Model: AM20104
    Working voltage: AC 220V/10A/50HZ
    Power: 0.4 KW
    Air pressure: 0.5-0.8 Mpa
    Ambient temperature: -20℃+50℃
    Punching speed: 2S/hole Four-axis:2S for 4holes(depend on different material)
    Weight: 35KG
    Size: 740×420×400 mm

    Specification

    Clamping stroke: 400mm
    Feed speed: CNC adjustment, up to 100mm/s
    Hole spacing: CNC adjustment
    Adjustment accuracy: ±0.02mm
    Motorized spindle speed: 0~6000RPM stepless speed regulation
    Motorized spindle runout: ≤±0.03mm
    Single spindle adjustment angle: 30 degrees (with scale)
    Z-axis module accuracy: ±0.02mm
    Hole size range: 0.3-8mm
    catheter diameter range: 1.5-6.0mm
    Applicable materials: PVC, PU, HDPE, LDPE, PP, PA, PEBAX, FEP, etc

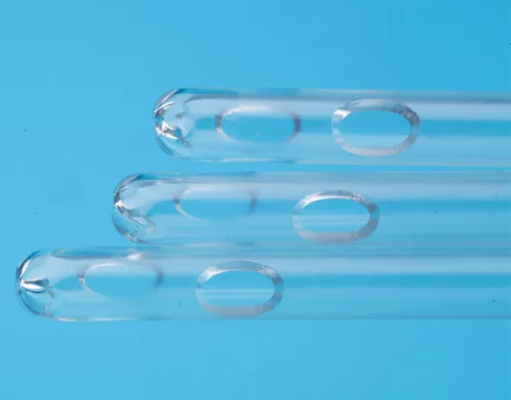

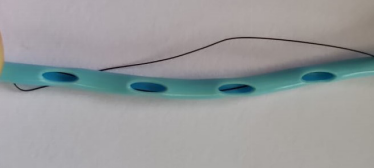

    Application products: Medical catheter and other plastic catheters

    Application

    [video width="1280" height="720" mp4="https://www.automachines.cn/wp-content/uploads/2021/10/AM20104-Four-axis-CNC-punching-machine-for-plastic-catheter.mp4"][/video]

    Video

    Accessories
