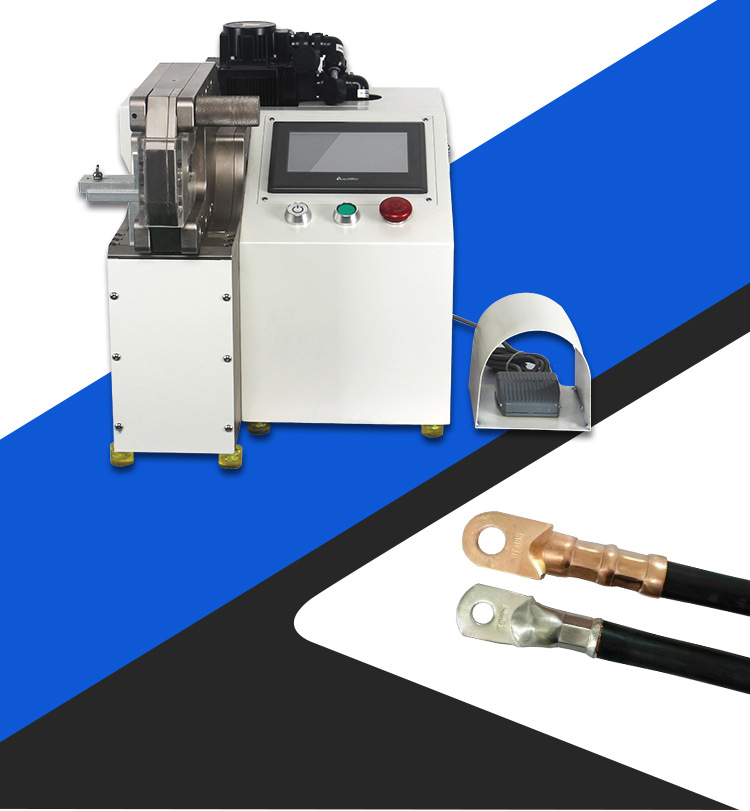

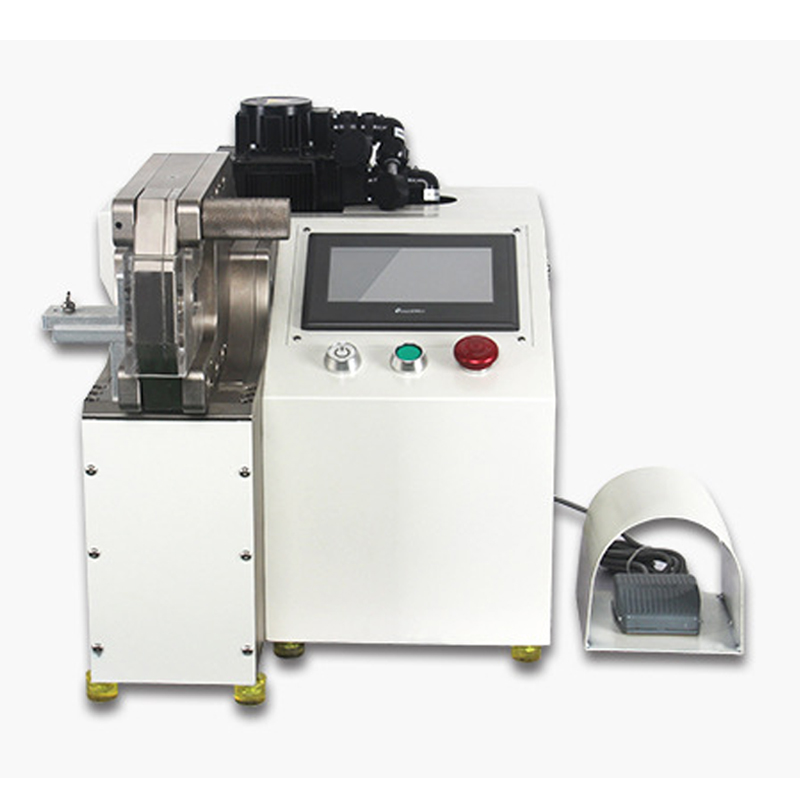

AM213 Hexagonal Edge terminal crimping machine

  • Model:AM213
  • Brand: Aituo
  • Delivery:7 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message

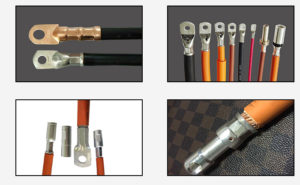

    1. This crimping machine is mainly designed for large tubular terminal, closed cold-pressed terminals.
    2. Hexagonalcrimping machineis widely used in new energy cable, charging cable and charging gun wire harness processing field.
    3. Industrial control chip with high precision servo drive make sure the machine running very stable.
    4. 10-120mm² closed tubular terminal crimping no need to change die set, crimping diameter can be adjusted in seconds.
    5. Suitable for crimping operation of non-standard terminals or crimping terminals.
    6. Crimping joint can be completely opened, and is suitable for pressing the middle connection or the large square terminal.
    7.  It can adjust the position with the actual square wire.
    8. Compact structure, space saving and low working noise.

    Model

    AM213-1

    AM213-2

    Crimping force

    200KN

    40KN

    Stroke

    350mm

    240mm

    Crimping width

    12.5mm(other size can be customized)

    8.0mm(other size can be customized)

    Power

    220V/110V/50HZ/60HZ

    220V/110V/50HZ/60HZ

    Weight

    120KG

    80KG

    Dimension

    500*450*480mm

    560*370*300mm

    Accessories
