HDMI Cable Production Procedure

HDMI /USB 3.0/USB 3.1 cable manufacturing process and equipment

Process 1:   Cut and strip the cable

Automatic wire cutting and stripping machine

Process 2:  Trim the Aluminum foil

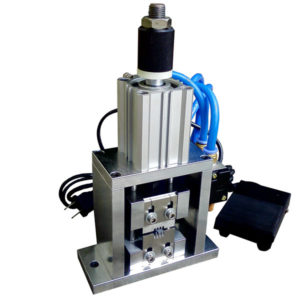

 Vertical Aluminum foil trimming machine

Process 3:  Position the inner wire on the plastic wire claw holder

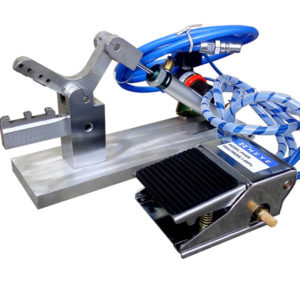

  Angle type wire traverse machine

Process 4:  Strip the inner wire

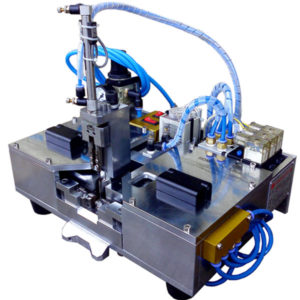

 Stripping machine for two side

Process 5:  Tin the inner wire

Process 6:  Assemble the connector with wire

Process 7:  welding the connector

  High frequency welding machine

Process 8:  mold the connector

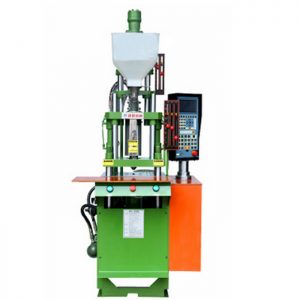

 Injection molding machine
