1+2 fully automatic MASK making machine

  • Model:AMDH3501
  • Brand: Aituo
  • Delivery: 3 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message

Description

The full-automatic medical mask machine (one for two) uses servo and constant temperature control system to control the material from entering compounding → molding → welding → punching → spot welding ear bands at one time through the PL program control.

Product features of the mask machine

The mask machine is a process of manufacturing a variety of masks with constant filtration performance through processes such as hot-pressed folding molding, ultrasonic welding, scrap removal, and welding of earband nose bridge strips. Its production rate of masks is 80-120pieces / min and above, and the pass rate is over 99%, which can more than double the production efficiency of similar products

Specification

Voltage:220V,AC±5% 50HZ
power:11KW
Speed:80-120Pcs/min

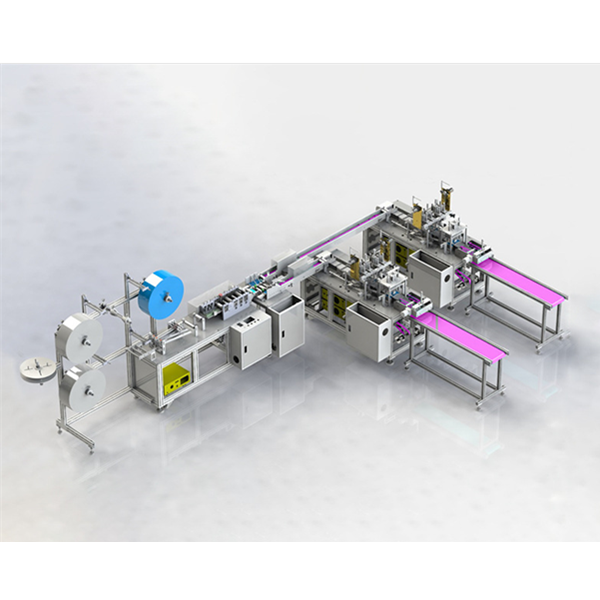

Main Components:
1. Shelf: L2630 * W730 * H1680MM, 96KG
2. Filming machine: L2200 * W580 * H1460MM,18KG
3. Long conveyor belt: L2480 * W140 * H250MM, 33.5KG
4. Short conveyor belt: L950 * W140 * H250MM,256KG
5. Film turning machine: L670 * W500 * H1000MM,80KG
6. Earband welding machine: L2010 * W950 * H *
1520MM,294KG (2 SETS)

Application

3 ply flat mask making
