AM6094 Semi-auto coaxial cable stripping machine

  • Model:AM6094
  • Brand: Aituo
  • Delivery:10~15 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message





    Description

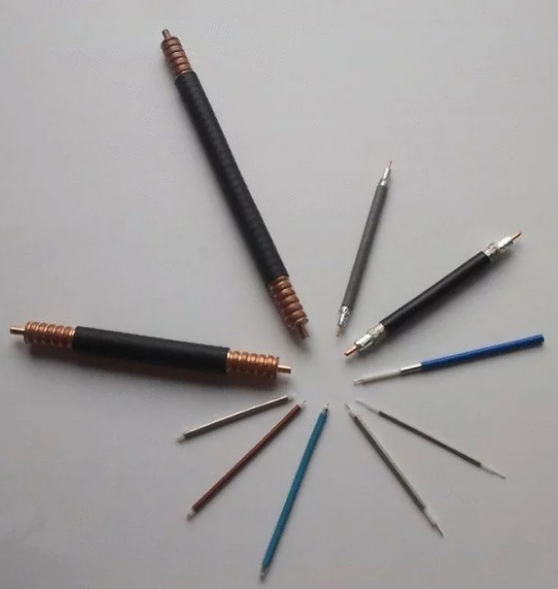

    Based on the AM6093 of the original cable processing range, AM6094 improved the stripping stroke up to 200mm. The model has better precision and efficiency for stripping the coaxial cable, video line, charging cable and power cable.

    Specification

    • Model: AM6094
    • Suitable cable: Coaxial cable
    • Interface: Chinese LCD 95*50MM
    • Display: Touch screen(Chinese and English language)
    • Voltage: AC220V/110V 50/60HZ
    • Power: 800W
    • Dimension: 1000*225*400mm
    • Wight: 50kg
    • Stripping length: ø0.1mm-ø200mm
    • Stripping length setting unit: 0.01mm
    • Cutting deepth setting unit: 0.01mm
    • Cutting diameter range: 3.0-25mm
    • Drive mode:servo motor/NSK ball screw drive
    • Stripping way: rotary blade
    • Maximum peeling layers: 9 layers
    • Blade: Imported tungsten steel (Kenner, Fuji)
    • Work environment:-5---45 degrees, dry and vibration-free work surface
    • Material for protecting wire: ASSAB high speed steel
    • Memory function: can store max 99 program

    Accessories
